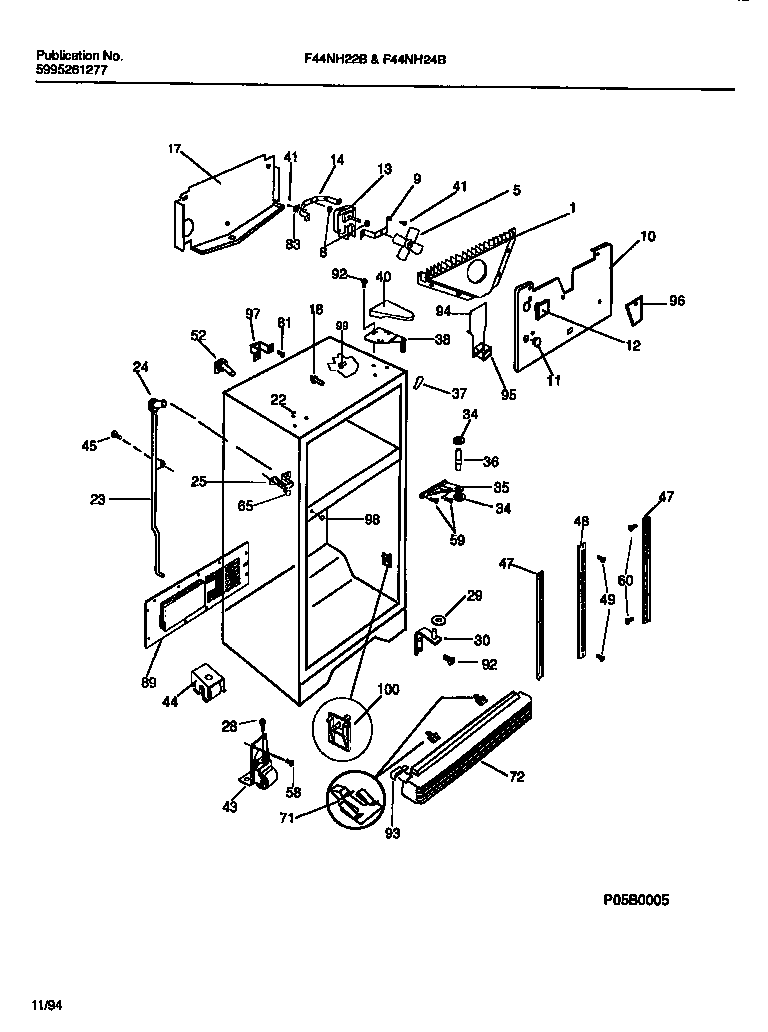

F44NH22BW0 05 – CABINET W/ FAN ASSEMBLY

F44NH22BW0 05 – CABINET W/ FAN ASSEMBLY

Written by

in

F44NH22BW0 05 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*88163PLUG, BUTTON, CABINET LINER (NI)
*88165HOT TUBE REPAIR KIT, SERVICE
*881615303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5303289025
1WCI 215937600
1ASPACER TUBE
2WCI 5303289029
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215458301
5WCI 5303292398
6WCI 215501601
7WCI 215459201
8WCI 5303289033
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13215474201 Frigidaire Refrigerator Washer
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
145317842502 Frigidaire Defrost Heater
15WCI 215379601
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
18WCI 5303292407
19TUBE-RUBBER
20AWCI 5303292405
20WCI 5303292406
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266301
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WCI 5303207353
25WCI 215014200
28WCI 5303289062
29COMPRESSOR W/O ELECTRICALS
29WCI 215003200
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30TAPPING PLATE, LH (NOT ILLUSTRATED)
30WCI 216008900
30WCI 218150800
31WCI 5303276514
32WCI 215012000
34WCI 215095400
35WCI 215002601
36WCI 215095900
37TRIM-CABINET CORNER, WHITE
38WCI 218158000
40WCI 5303288945
415308000039 Frigidaire Refrigerator Screw
43WCI 5303289059
435308000133 Frigidaire Refrigerator Clamp
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
44WCI 215163900
455304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
47WCI 5303292394
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52TUBE-WATER,ICE MOLD FILL ,ELBOW
52PLUG-WTR INLET TUBE
54AWCI 5303289311
54BWCI 5303289292
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 215073800
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59SEAL-FOAM,COND FAN SHROUD
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
59WCI 5303289031
60WCI 215501800
61WCI 5303289032
61WCI 215004700
61GROMMET, SILENCER (NOT ILLUSTRATED)
65WCI 5303001361
71WCI 215003300
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 215362901
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 215327101
94SEAL-AIR DUCT COVER
94WCI 5303292
