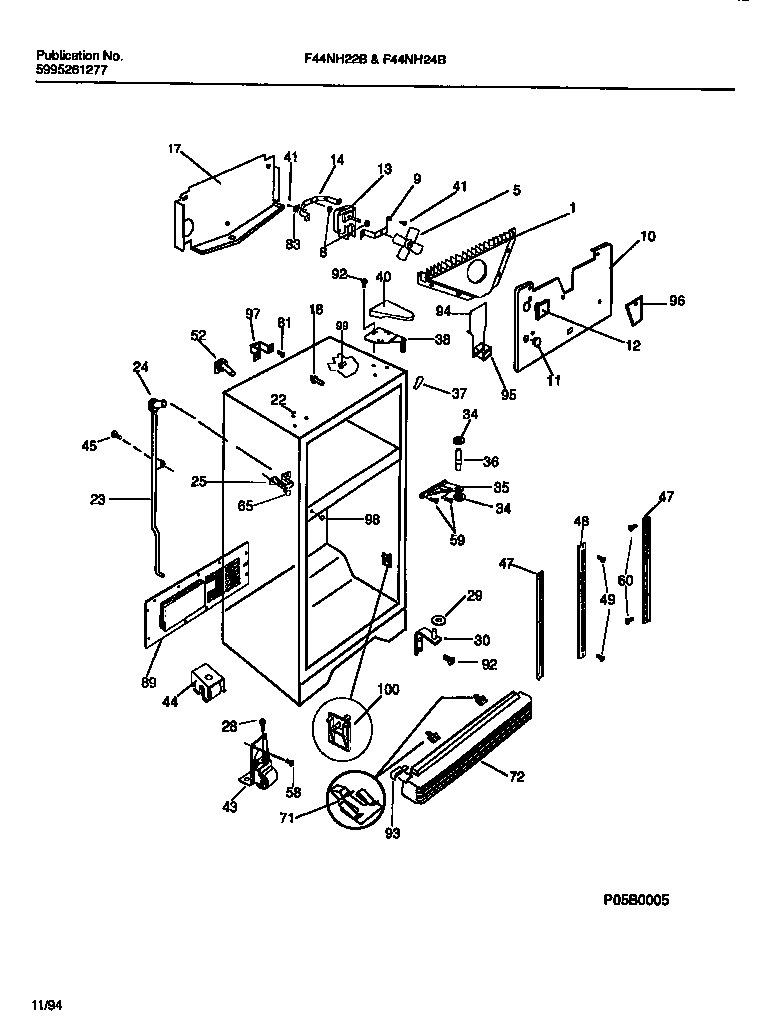

F44NH24BD0 05 – CABINET W/ FAN ASSEMBLY

F44NH24BD0 05 – CABINET W/ FAN ASSEMBLY

Written by

in

F44NH24BD0 05 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*88162TOUCH, UP PAINT, ALMOND (NI)
*88165HOT TUBE REPAIR KIT, SERVICE
*88163PLUG, BUTTON, CABINET LINER (NI)
1ASPACER TUBE
1WCI 215937600
1WCI 5303289487
2WCI 5303289029
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215458301
5WCI 5303292398
6WCI 215501601
7WCI 215459201
8G187559 Frigidaire Refrigerator Bushing
8WCI 5303289033
9WCI 5303292396
10WCI 5303294249
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13215474201 Frigidaire Refrigerator Washer
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
14WCI 5303292671
15WCI 215379602
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303292440
17WCI 5303292457
18WCI 5303292407
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303292406
20AWCI 5303292405
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
22WCI 215134511
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
23WCI 215266301
24WCI 5303207353
25WCI 215014200
28WCI 5303289062
29WCI 5303917193
29WCI 215003200
30WCI 218150800
30WCI 216008900
30TAPPING PLATE, LH (NOT ILLUSTRATED)
30TAPPING PLATE, RH (NOT ILLUSTRATED)
31WCI 5303299560
32WCI 215012000
34WCI 215095400
35WCI 215002611
36WCI 215095900
37TRIM-CABINET CORNER, ALMOND
38WCI 218158000
40WCI 5303288946
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
435308000133 Frigidaire Refrigerator Clamp
43WCI 5303289059
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
47WCI 5303292394
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52TUBE-WATER,ICE MOLD FILL ,ELBOW
52PLUG-WTR INLET TUBE
54WCI 5303289027
54BWCI 5303289292
54AWCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 215073800
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
59SEAL-FOAM,COND FAN SHROUD
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60WCI 215501800
61WCI 215004700
61WCI 5303289032
61GROMMET, SILENCER (NOT ILLUSTRATED)
65WCI 5303001361
71WCI 215003300
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 5303289508
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 215176300
92241710601 Frigidaire Refrigerator Screw
93WCI 215327111
94SEAL-AIR DUCT COVER
94WCI 5303292
