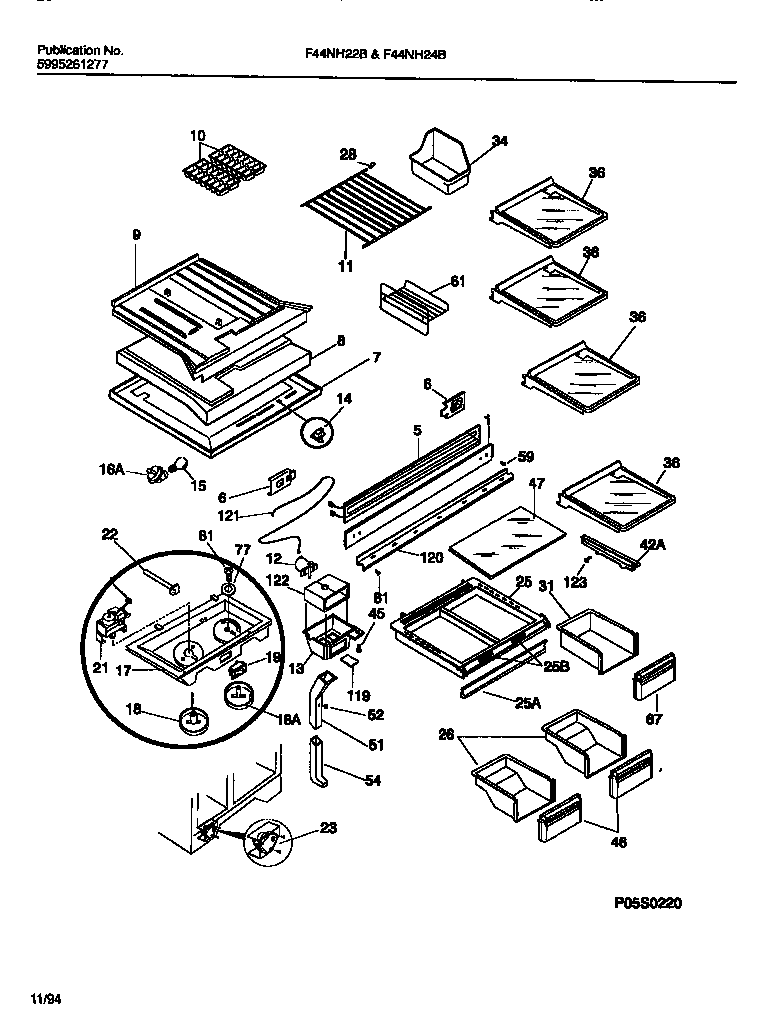

F44NH24BD0 06 – SHELVES, CONTROLS, DIVIDER, MULLION

F44NH24BD0 06 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

F44NH24BD0 06 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*88164WCI 215848000
1WCI 215002202
5WCI 215099600
6WCI 218279800
7WCI 5303001380
7WCI 215028104
8WCI 215038601
9WCI 215033800
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
11SPACER-FRZR SHELF
11WCI 5303304568
12WCI 215132300
12WASHER-AIR DEFLECTR
12SPACER-AIR DEFLECTR
13NUT, ANCHOR (NI)
13WCI 215420300
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17NUT-ANCHOR
17WCI 215932903
18WCI 5303296667
18AWCI 5303296668
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303303674
21WCI 5303001260
22WCI 215932100
23COVER-DEFROST TIMER, TOP
23SHIELD-DEFROST TIMR,BTM
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
25WCI 215216608
25AWCI 5303300010
25B5303307715 Frigidaire Refrigerator Humidity Control
26WCI 5303292432
28END CAP-SHELF, PROTECTOR
31WCI 5303292434
345303212918 Frigidaire Refrigerator Cont
36WCI 215406101
42AHANGER-PAN/TRAY, RH
42AWCI 215002301
455304455651 Frigidaire Refrigerator Screw
46WCI 5303291323
47WCI 5303294005
51WCI 215133300
51WCI 215133200
51WCI 215132801
52WCI 215132901
52WCI 215133000
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303292670
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019202
121NUT,PUSH-ON ,DAMPER CABLE
121WCI 215220801
122WCI 215132502
123215005101 Frigidaire Refrigerator Screw
