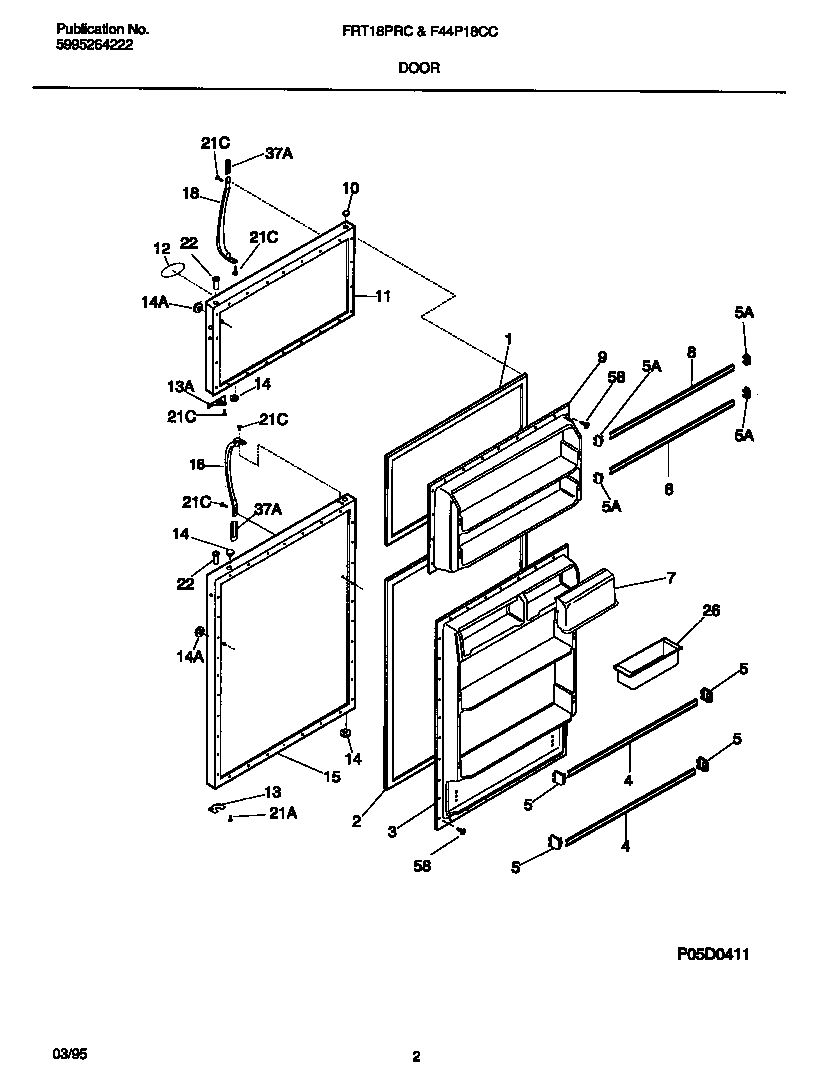

F44P18CCD0 02 – DOOR

F44P18CCD0 02 – DOOR

Written by

in

F44P18CCD0 02 – DOOR

Products

PositionProduct
*03240INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
5218758602 Frigidaire Refrigerator Door Rack Support
5WCI 215251401
7WCI 218287904
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917574
12WCI 218364002
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 215008617
13WCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917576
18WCI 218363402
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37WCI 215870608
585304455651 Frigidaire Refrigerator Screw
