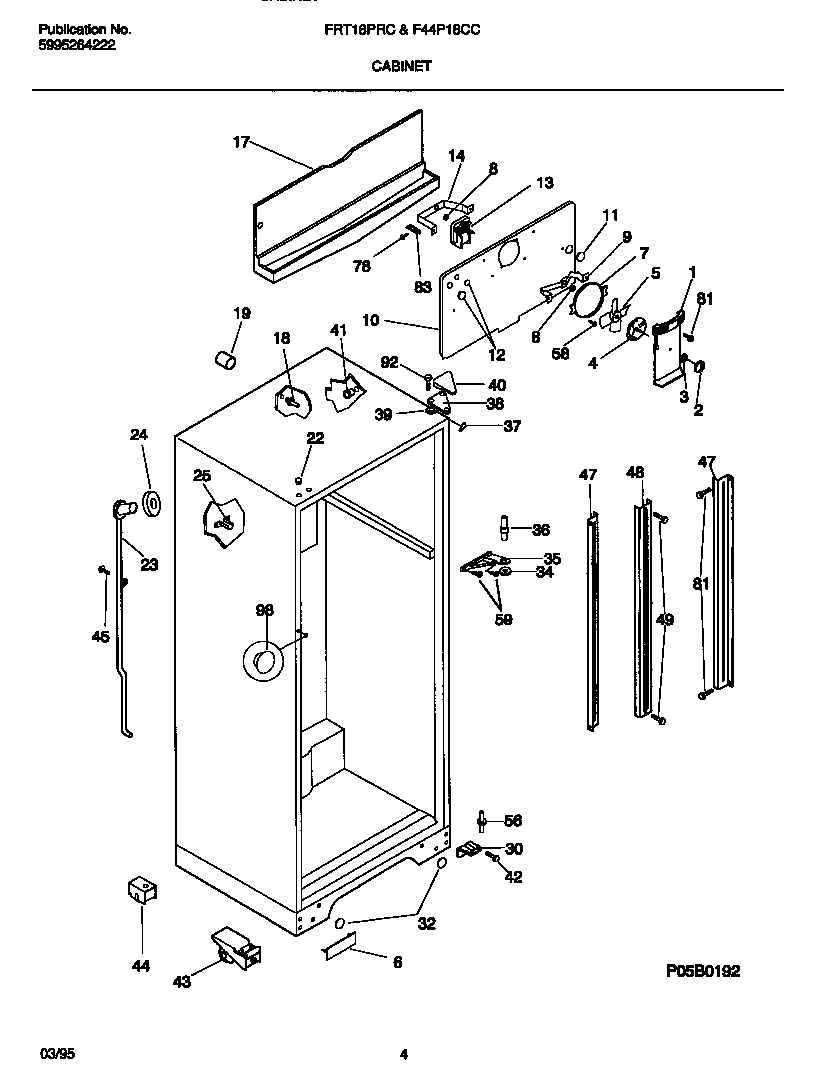

F44P18CCD0 03 – CABINET

F44P18CCD0 03 – CABINET

Written by

in

F44P18CCD0 03 – CABINET

Products

PositionProduct
*03242PLUG, BUTTON, CABINET LINER (NI)
*03243TOUCH, UP PAINT, ALMOND (NI)
*032415304500008 Frigidaire Oven Screw
1WCI 5303307350
2WCI 5303307351
3Nut,push-on
4WCI 218430000
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
30BTAPPING PLATE, LOWER HINGE, (2) (NI)
30CSHIM, LOWER HINGE (NI)
30AWCI 3206136
32PLUG-BUTTON, ALMOND, CABINET BASE
34WCI 5308000186
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43DWCI 5308011326
43AWCI 5300188673
43BWCI 5308009760
43EBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43CWCI 5308009790
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
