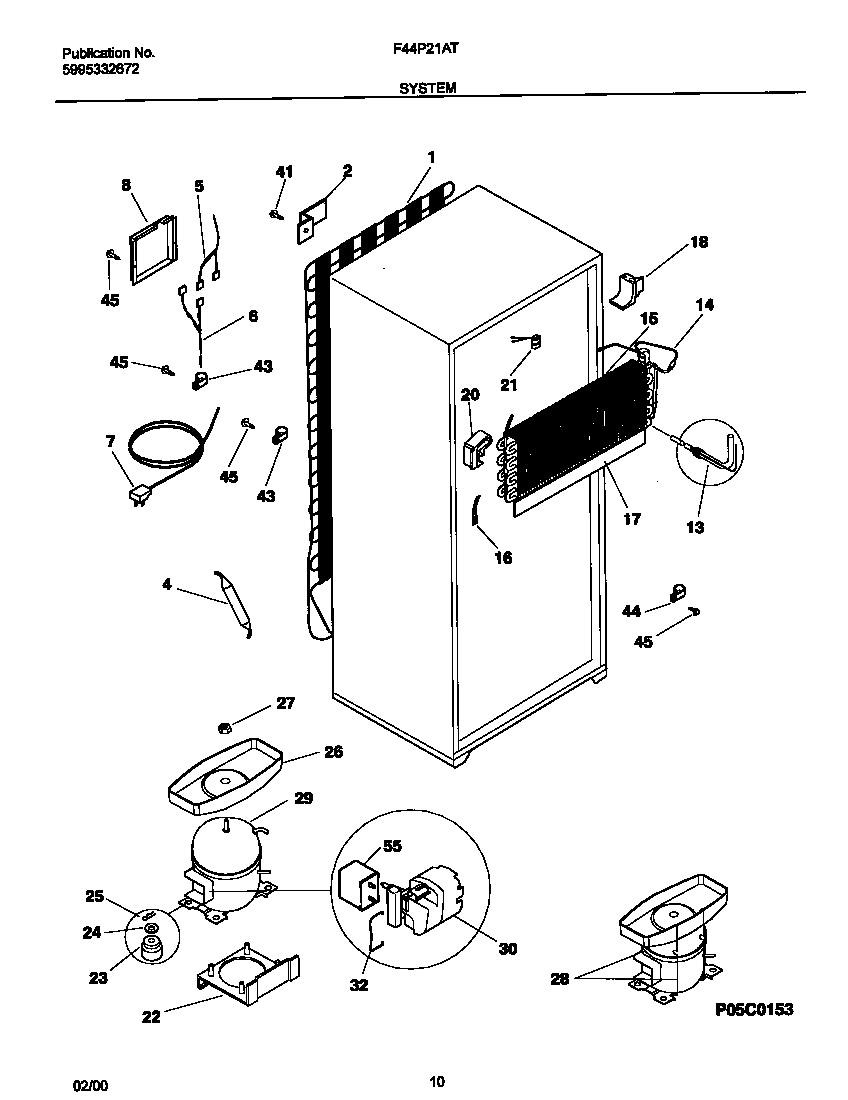

F44P21ATD3 05 – SYSTEM

F44P21ATD3 05 – SYSTEM

Written by

in

F44P21ATD3 05 – SYSTEM

Products

PositionProduct
*08861WCI 5304406040
*08868HOT TUBE REPAIR KIT-SERVICE
*08867218843801 Frigidaire Refrigerator Screw
*08864WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*08862WCI 5304406721
*088655303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*08869WCI 218905701
*08860WCI 5304406039
*08863WCI 5304406722
*088665304455852 Frigidaire Refrigerator Screw
1WCI 218657100
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS,CONTROL/DIVIDER
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076405
145317842502 Frigidaire Defrost Heater
15WCI 218765400
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218773700
20INSULATION BLOCK, LH
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
