F44Q21CCD1 02 – DOOR

F44Q21CCD1 02 – DOOR

Written by

in

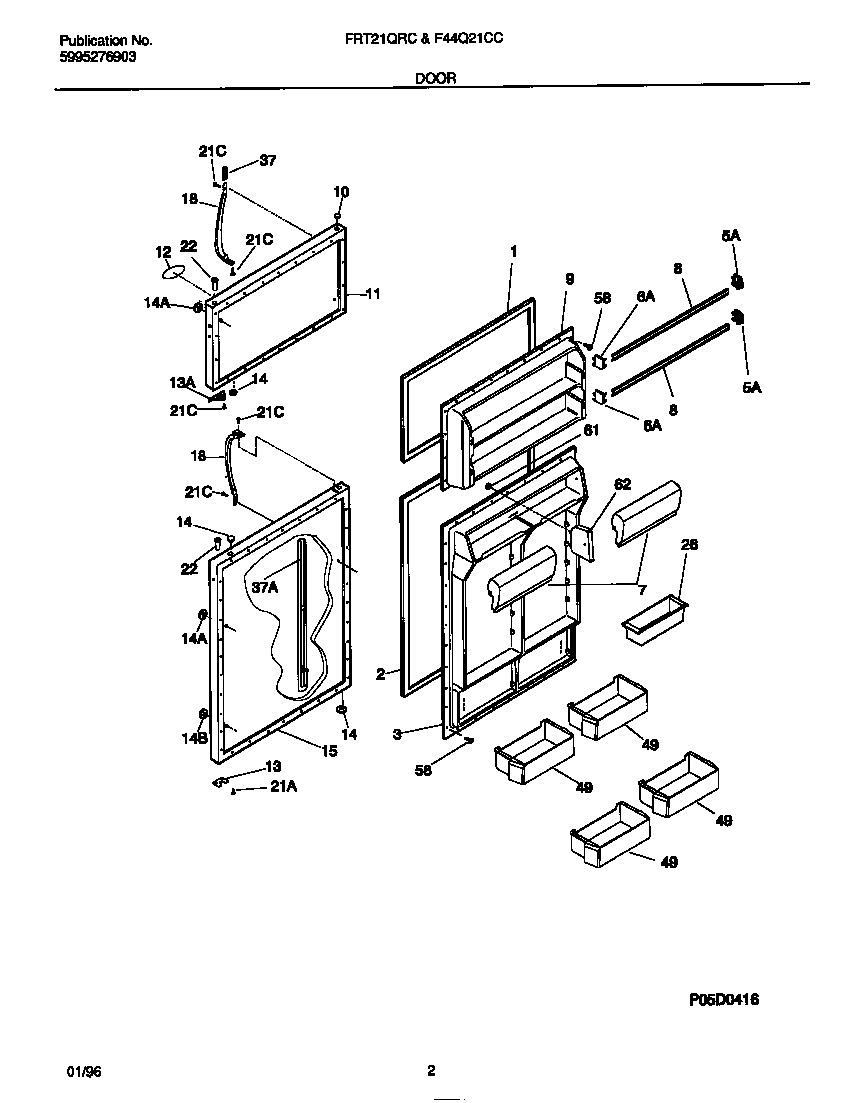

F44Q21CCD1 02 – DOOR

Products

PositionProduct
*22240INSULATION
1WCI 215608903
2WCI 215732403
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308336
8WCI 215474041
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917605
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 215008617
12WCI 218364002
13WCI 218249002
13DOOR STOP, REFR SECTION
14WCI 218074002
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917640
18WCI 218363402
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26WCI 3204522
37WCI 215867026
37WCI 215867038
37AWCI 215782300
37BWCI 215940700
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
