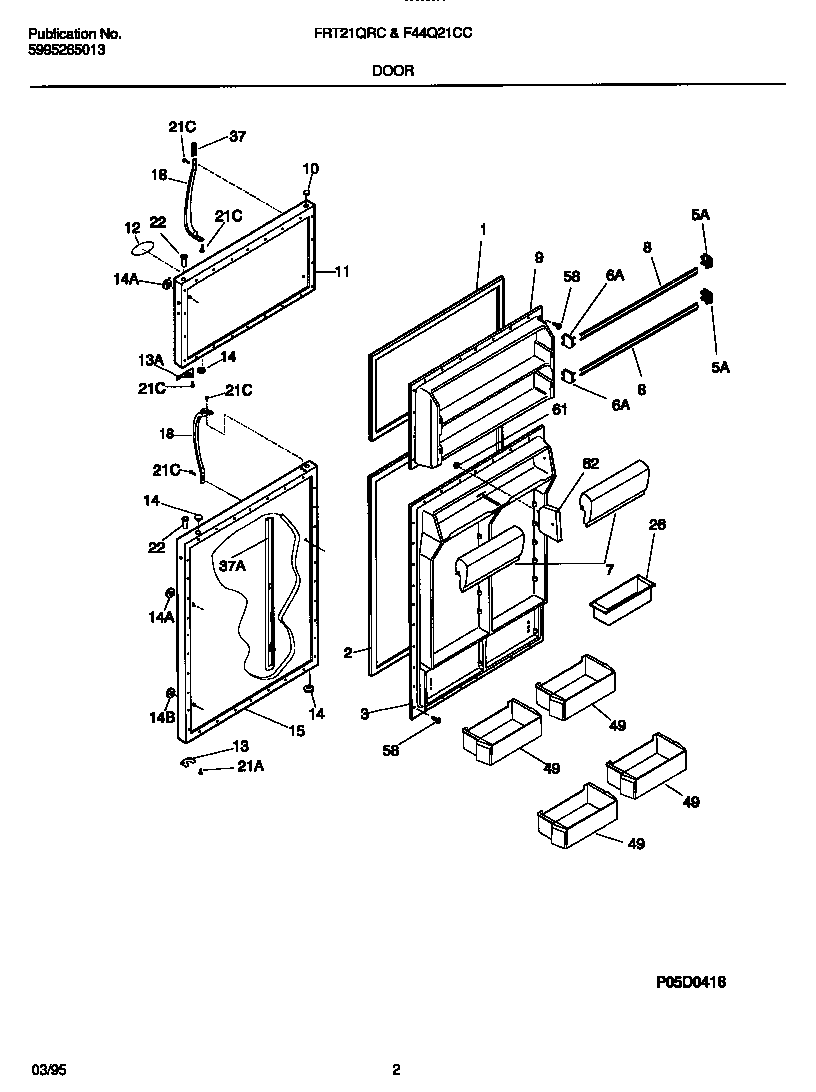

F44Q21CCW0 02 – DOOR

F44Q21CCW0 02 – DOOR

Written by

in

F44Q21CCW0 02 – DOOR

Products

PositionProduct
*24800INSULATION
1WCI 215608913
2WCI 215732413
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308336
8WCI 215474041
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917604
12WCI 218364001
12LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249001
13DOOR STOP, REFR SECTION
14WCI 218074001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917606
18WCI 218363401
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26WCI 3204522
37BWCI 215782300
37WCI 215867037
37AWCI 215940700
37WCI 215867025
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
