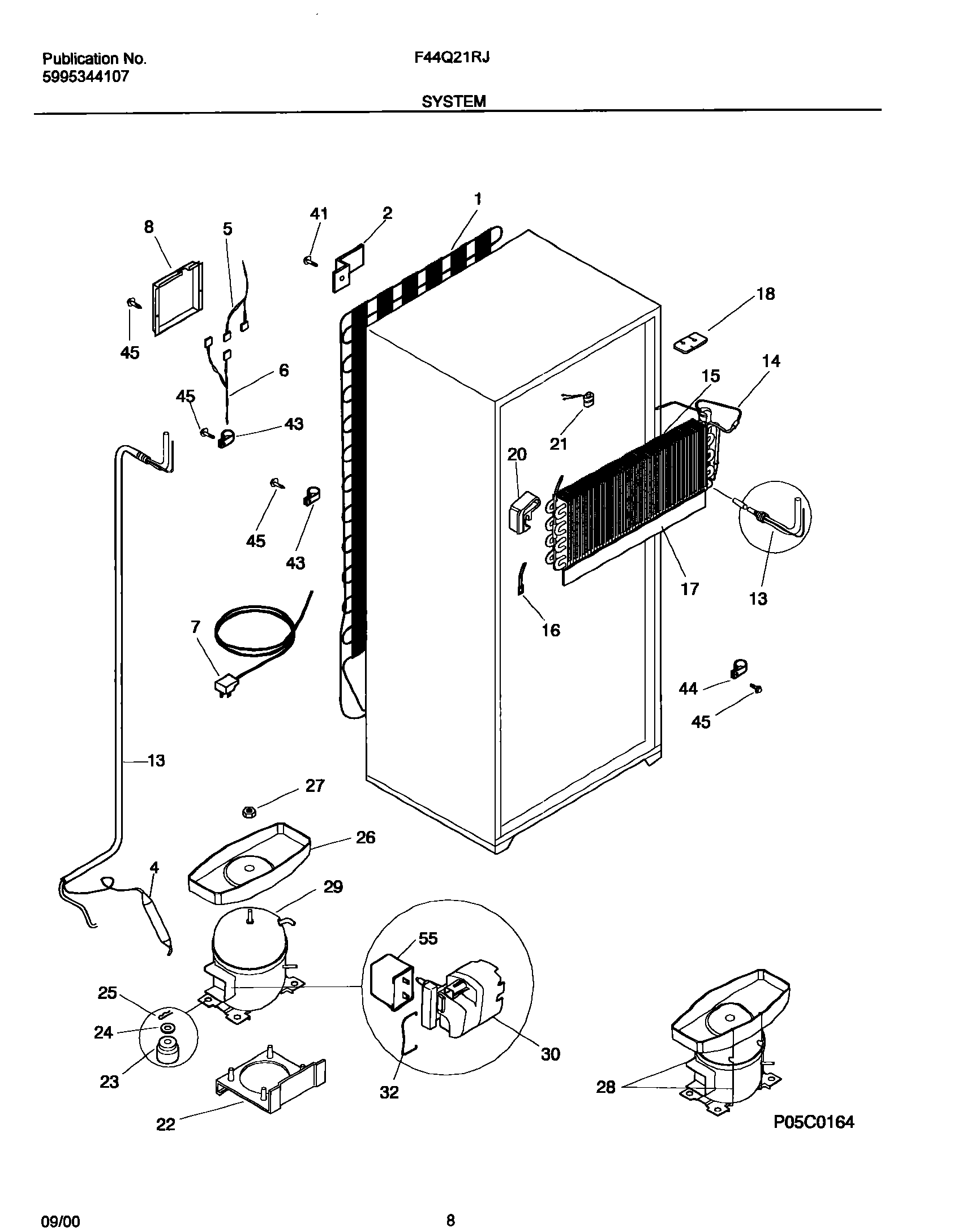

F44Q21RJD1 09 – SYSTEM

F44Q21RJD1 09 – SYSTEM

Written by

in

F44Q21RJD1 09 – SYSTEM

Products

PositionProduct
NIWCI 218905701
NIHOT TUBE REPAIR KIT-SERVICE
1WCI 5304406721
1WCI 5304406722
1WCI 218657100
1WCI 5304406039
1WCI 5304406040
2BRACKET, MOUNTIN, CONDENSER, (4)
2WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS,CONTROL/DIVIDER
6WCI 215257001
7CORD-ELECTRIC POWER
7218843801 Frigidaire Refrigerator Screw
8WCI 5303001197
13WCI 215076408
145317842502 Frigidaire Defrost Heater
15WCI 218955701
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 218973901
18WCI 218998101
20WCI 218821201
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
265303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721108
32218973501 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
435308000133 Frigidaire Refrigerator Clamp
44WCI 218974101
455304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
555304464438 Frigidaire Compressor Run Capacitor
