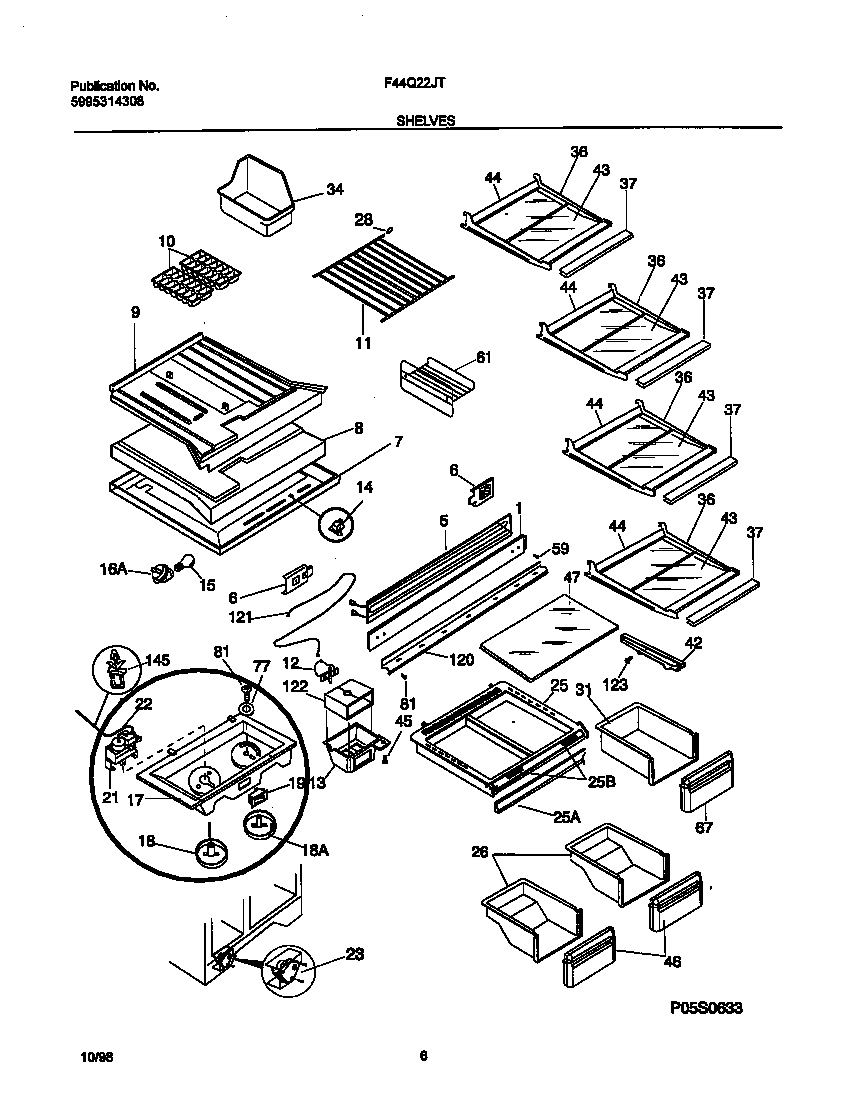

F44Q22JTB0 04 – SHELVES

F44Q22JTB0 04 – SHELVES

Written by

in

F44Q22JTB0 04 – SHELVES

Products

PositionProduct
*85224COVER-DEFROST TIMER, TOP
*85221NUT, ANCHOR (NI)
*85226SHIELD-DEFROST TIMR,BTM
*85215SPACER, FRZR SHELF (NOT ILLUSTRATED)
*85223WCI 5303001260
*85222NUT-ANCHOR
*85229WCI 215359900
*85227HANGER-PAN/TRAY, RH
*85228WCI 215339100
*85230WCI 215848000
*85213WCI 5303001380
*852255304455649 Frigidaire Refrigerator Screw
*85217WCI 215363801
*85218WASHER-AIR DEFLECTR
*85219WCI 215363901
*85214SPACER-FRZR SHELF
*85216SPACER-AIR DEFLECTR
*85220WCI 218634800
1WCI 215002201
5WCI 218752300
6WCI 218279800
7WCI 218646702
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303297948
12WCI 218634902
13WCI 218629900
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 215932905
18WCI 5303310732
18WCI 5303310731
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5304403880
22WCI 218660701
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25WCI 5303308349
25WCI 215216646
255303307715 Frigidaire Refrigerator Humidity Control
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215919141
37WCI 215919412
42WCI 215002301
43WCI 218390599
44WCI 215919812
455304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
46WCI 5304403882
47WCI 218390591
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5304403883
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121NUT,PUSH-ON ,DAMPER CABLE
121WCI 215364001
122WCI 218561203
122WCI 218561201
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
