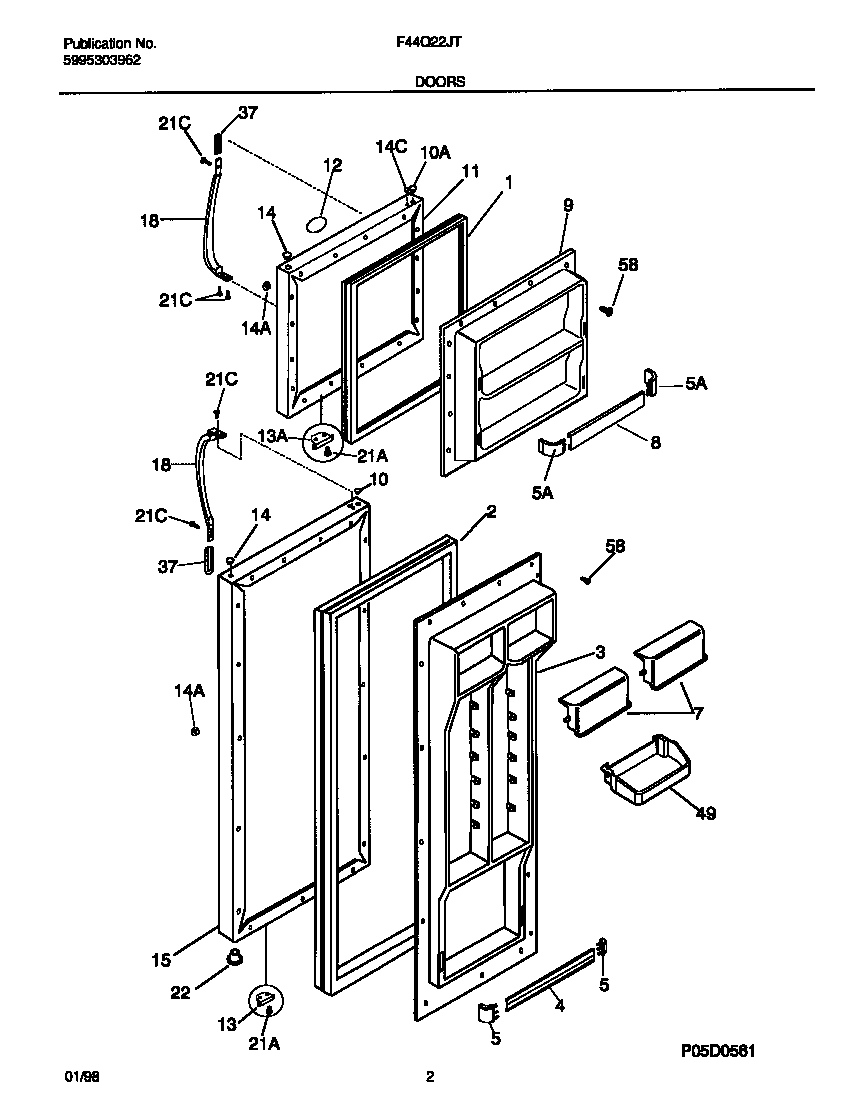

F44Q22JTD0 02 – DOORS

Products

PositionProduct
*81040WCI 215008617
*81043INSULATION
*81042MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1WCI 215608905
2WCI 218730615
3WCI 215784001
5A218809801 Frigidaire Refrigerator Support-Door Rack
5B218809701 Frigidaire Refrigerator Door Rack Support
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303308341
8215516220 Frigidaire Refrigerator Door Rack
9WCI 215278301
10WCI 5303292414
10WCI 218696502
11WCI 5303918025
12WCI 218364002
13WCI 215030011
13WCI 5303289522
14WCI 218696602
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303918023
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
37BWCI 218676001
37AWCI 215940700
37WCI 215867059
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
