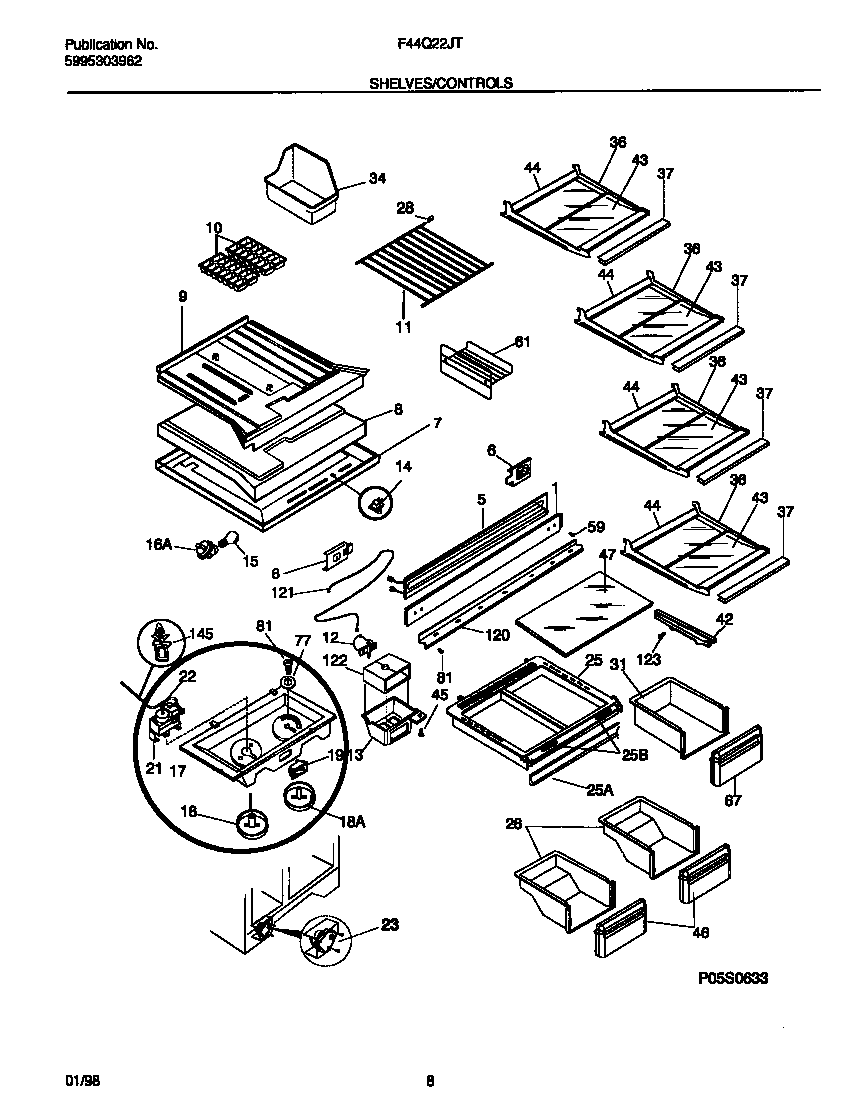

F44Q22JTW0 04 – SHELVES/CONTROLS

F44Q22JTW0 04 – SHELVES/CONTROLS

Written by

in

F44Q22JTW0 04 – SHELVES/CONTROLS

Products

PositionProduct
*81066WCI 215339100
*81059NUT-ANCHOR
*81061WCI 5303001260
*81063COVER-DEFROST TIMER, TOP
*81068WCI 215848000
*81060NUT, ANCHOR (NI)
*81058WASHER-AIR DEFLECTR
*81056SPACER, FRZR SHELF (NOT ILLUSTRATED)
*81055SPACER-FRZR SHELF
*81057SPACER-AIR DEFLECTR
*81064SHIELD-DEFROST TIMR,BTM
*81067WCI 215359900
*810625304455649 Frigidaire Refrigerator Screw
*81065HANGER-PAN/TRAY, RH
1WCI 215002201
5WCI 218752300
6WCI 218279800
7WCI 218646701
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303297948
12WCI 218634902
13WCI 218629900
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 215932905
18WCI 5303310732
18WCI 5303310731
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303319419
22WCI 218660701
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25WCI 215216646
25WCI 5303308349
255303307715 Frigidaire Refrigerator Humidity Control
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215919141
37WCI 215919412
42WCI 215002301
43WCI 218390599
44WCI 215919812
455304455651 Frigidaire Refrigerator Screw
46WCI 5304403882
47WCI 218390591
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5304403883
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122AWCI 218561201
122BWCI 218561203
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
