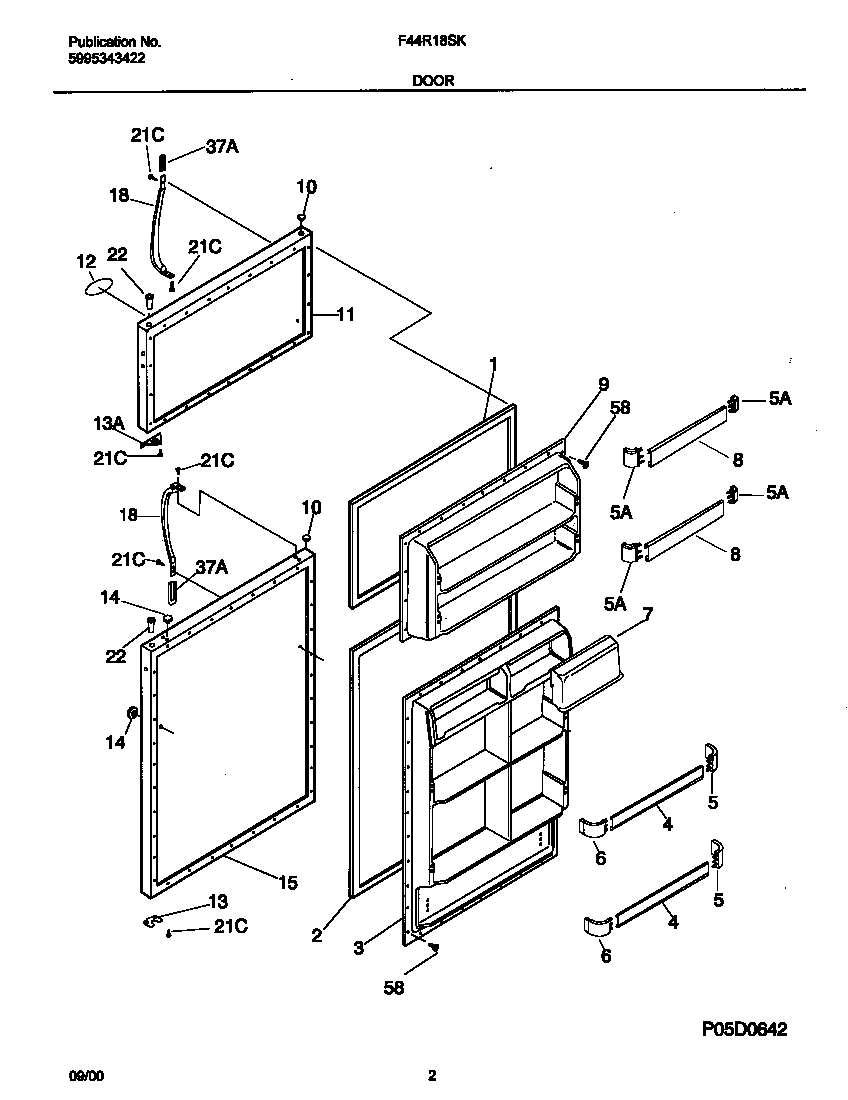

F44R18SKD1 02 – DOOR

F44R18SKD1 02 – DOOR

Written by

in

F44R18SKD1 02 – DOOR

Products

PositionProduct
*90520WCI 215008617
*90525INSULATION
*90522MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*90523WCI 218364002
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5218809801 Frigidaire Refrigerator Support-Door Rack
6218809701 Frigidaire Refrigerator Door Rack Support
7WCI 218287908
8WCI 218763638
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917807
12WCI 218425009
13WCI 218249002
13WCI 218800300
14WCI 218915702
15WCI 5303917808
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37WCI 218676004
37WCI 215870630
58Screw,No.10 pan hd ,8-18 x .5
