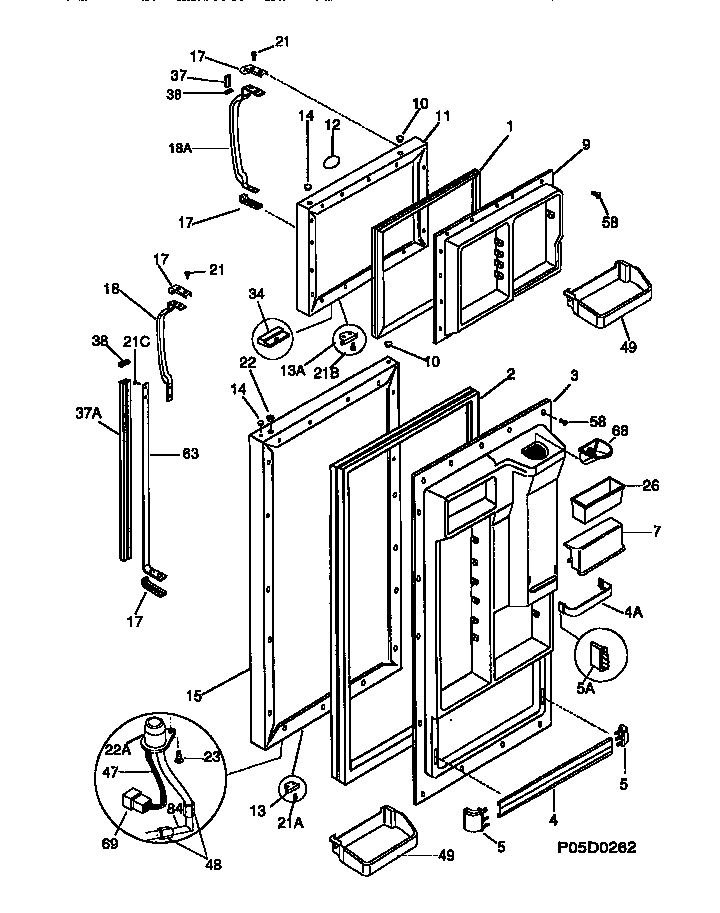

F44XH24BB0 02 – DOOR

F44XH24BB0 02 – DOOR

Written by

in

F44XH24BB0 02 – DOOR

Products

PositionProduct
*93160INSULATION
1WCI 215776724
2WCI 215732428
3WCI 215365601
4215516220 Frigidaire Refrigerator Door Rack
4AWCI 215693900
5AWCI 5303288950
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303304566
9WCI 215365501
10WCI 5303299154
11WCI 21510418
12WCI 215008612
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
13AWCI 215030018
14240494003 Frigidaire Refrigerator Plug-Button
15WCI 215622218
17WCI 218025603
18AWCI 215981303
18WCI 215983203
21AWCI 215218600
21C5308000039 Frigidaire Refrigerator Screw
21BWCI 215218700
21WCI 215201400
22WCI 5303289320
22AWCI 215615300
23WCI 5303001020
26CONTAINER-EGG
34WCI 215423600
37AWCI 215268106
37WCI 215268107
38WCI 215117301
47WCI 215683000
48NUT, 7/16 X 20, NYLON
49AWCI 215441701
49WCI 215441605
585304455651 Frigidaire Refrigerator Screw
63WCI 215209500
68WCI 215327001
69CONNECTOR-DOOR HARN
84WCI 5308010289
