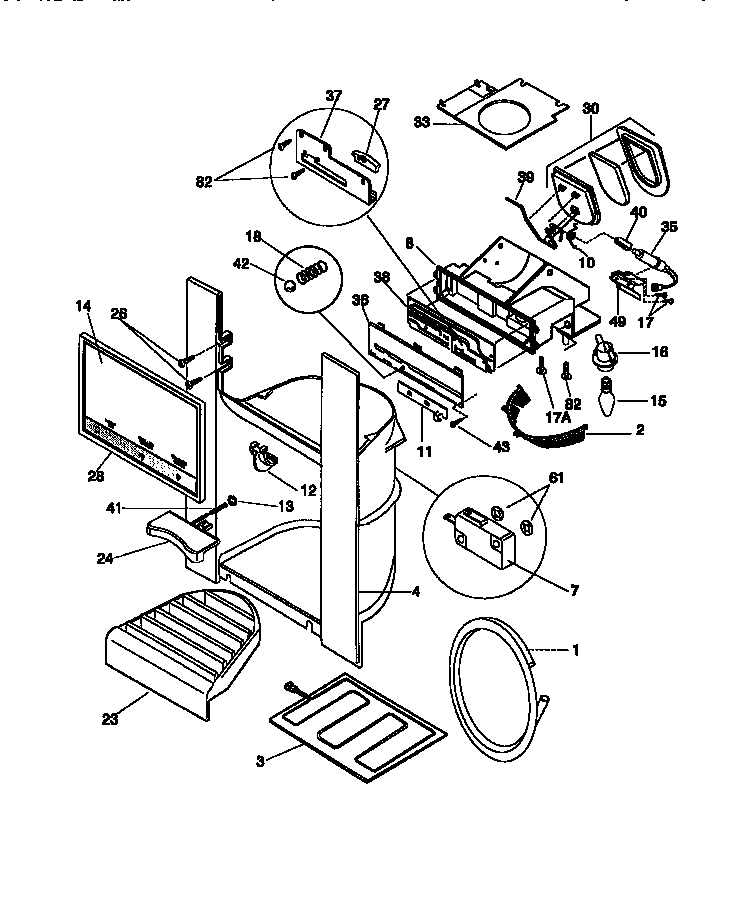

F44XH24BW0 08 – ICE CONTAINER AND DISPENSER DRIVE

F44XH24BW0 08 – ICE CONTAINER AND DISPENSER DRIVE

Written by

in

F44XH24BW0 08 – ICE CONTAINER AND DISPENSER DRIVE

Products

PositionProduct
2WCI 218232900
3WCI 218232300
4AWCI 218216900
4LABEL-ICE CONTAINER (NOT ILLUSTRATED)
5WCI 215748105
6WCI 215752800
7WCI 215421601
9WCI 215419700
10AWCI 218232800
10241726501 Frigidaire Refrigerator Drive Bar
11WCI 215755200
12WCI 215420400
13WCI 218285200
14WCI 215419900
17WCI 215754800
18A5304462594 Frigidaire Refrigerator Motor-Auger
18WCI 215832900
20WCI 215379402
23BWCI 215755300
23RING-RETAINER (NOT ILLUSTRATED)
23ASTUD (NOT ILLUSTRATED)
25WCI 215421400
26215503203 Frigidaire Refrigerator Door Handle Screw
27WCI 215748400
28WCI 215755100
29WCI 215757502
30WCI 215757300
31WCI 215757400
32RING-SNAP (NOT ILLUSTRATED)
32AWCI 215747501
33WCI 215748200
34WCI 215748300
35WCI 21573500
36WCI 215756700
37BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
37HWCI 215906400
37ABLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37BBLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37JBLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37CWCI 215906700
37DWCI 215906600
37IBLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37GSHAFT-CRUSHER (NOT ILLUSTRATED)
37FRING-SNAP (NOT ILLUSTRATED)
37ESPACER, (2) (NOT ILLUSTRATED)
38WCI 218270100
39WCI 215757000
41WCI 218270200
42WCI 215756000
43AWCI 215755002
43SPRING-KNOB (NOT ILLUSTRATED)
44WCI 218359200
45WCI 215935901
46WCI 218285302
47WCI 215254800
48WCI 215898200
