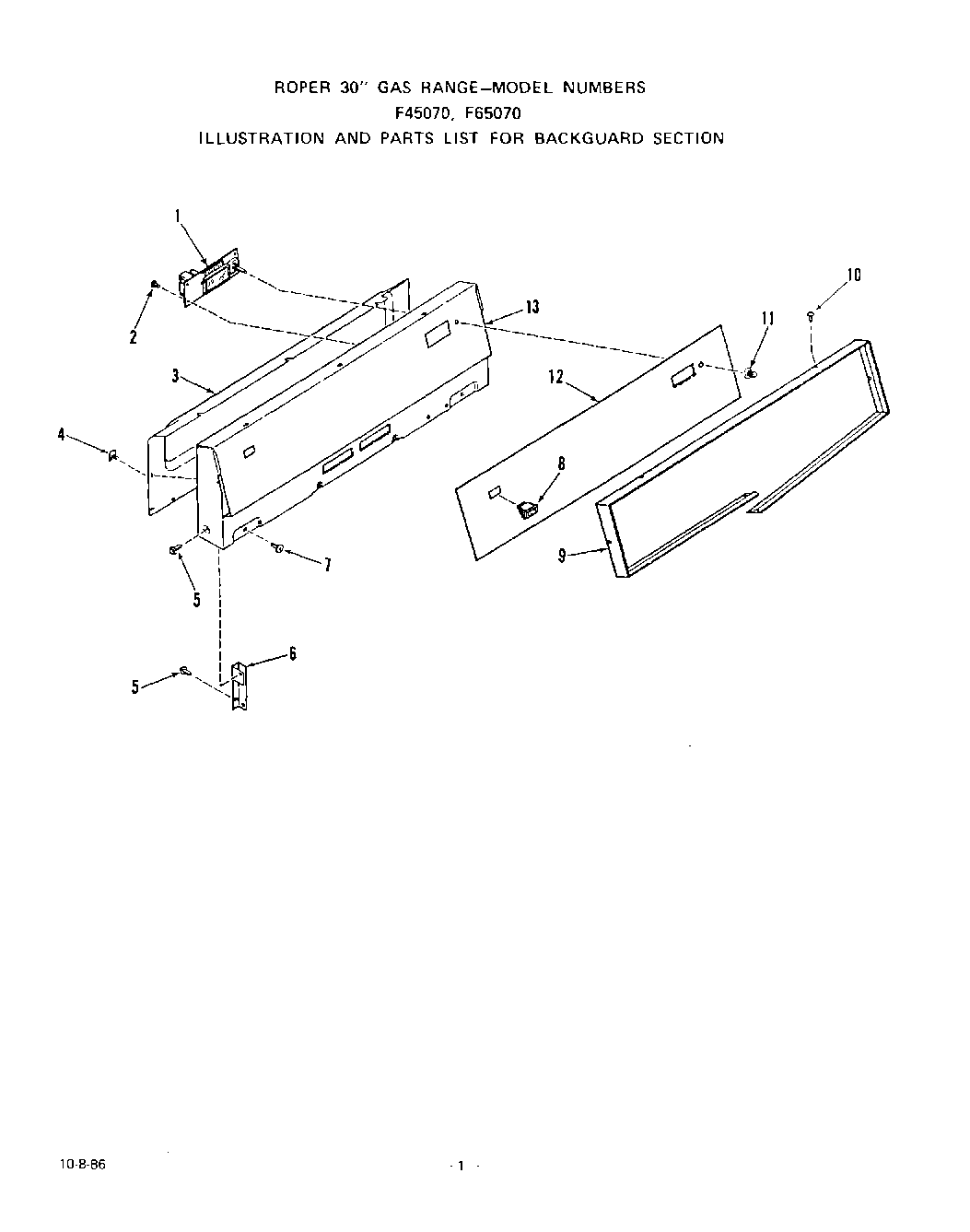

| 1 | Clock |
| 2 | Screw 6-32x5/16`` |
| 3 | Wire Cover |
| 4 | Clip |
| 5 | Screw 10-16x7/16`` |
| 6 | Support |
| 6 | Support-Backguard (Right) |
| 6 | Support-Backguard (Left) |
| 7 | Screw 10ABx1/2`` |
| 8 | Switch-Oven Light |
| 9 | 488946 Whirlpool Air Conditioner Clamp |
| 10 | Screw 6-20x3/8`` |
| 11 | Clock/Oven Control Knob |
| 12 | Insert - Backguard |
| 13 | Panel-Backguard |
