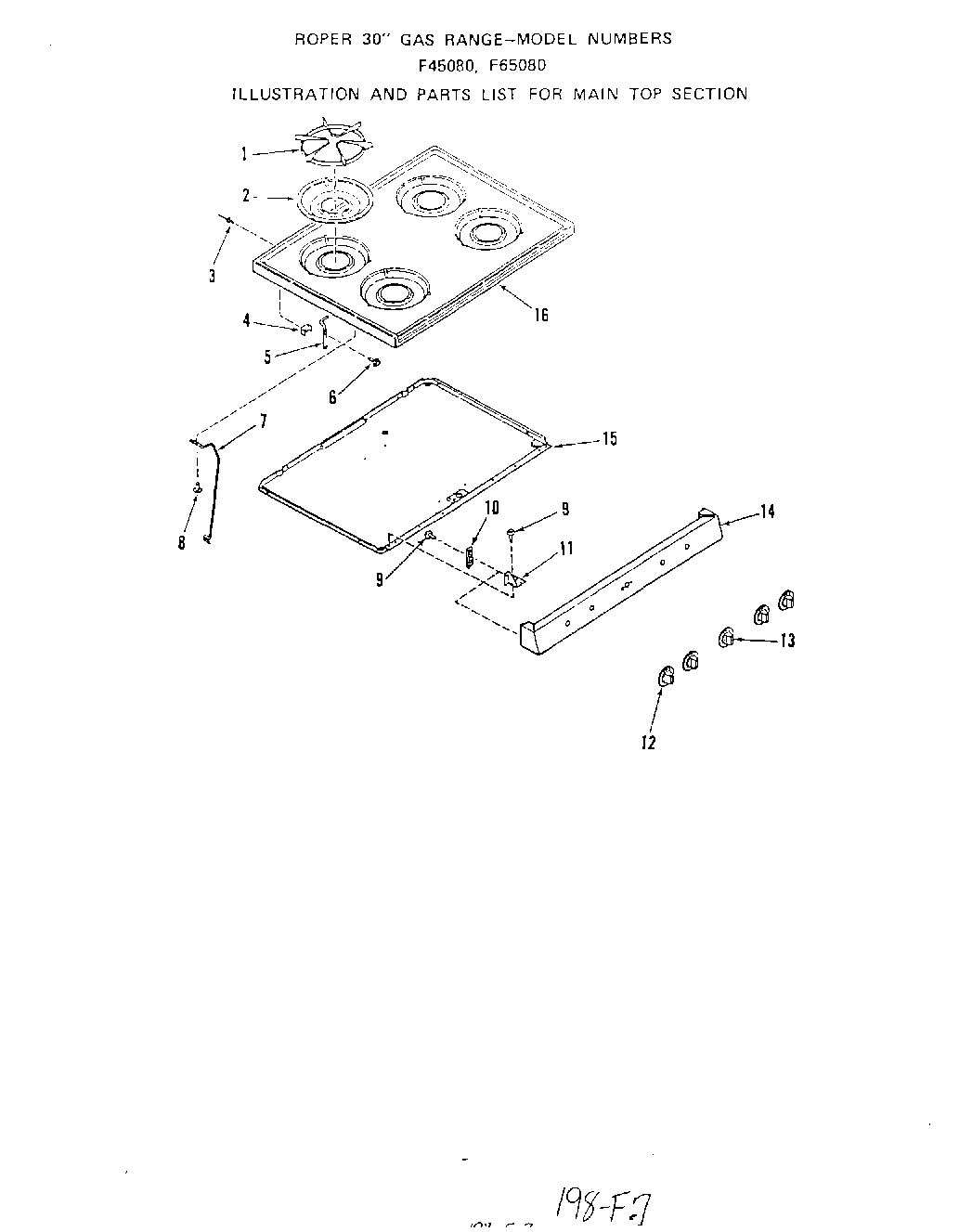

F4508L0 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Req)
2	Aeration Pan (Model F65080)
3	Rivet
4	Hinge Bracket
5	Right
5	Left
6	WPL 321162
7	Support Rod-Main Top (2 Req)
8	Screw
9	Screw 10-16×7/16“
10	Body Side Cleat
11	Manifold Panel Bracket (Left)
11	Manifold Panel Bracket (Right)
12	Gas Valve Knob
13	Thermostat Knob
14	Manifold Panel
15	Burner Box Bottom
16	Main top (White)
16	Chrome
16	Main Top (Almond)
