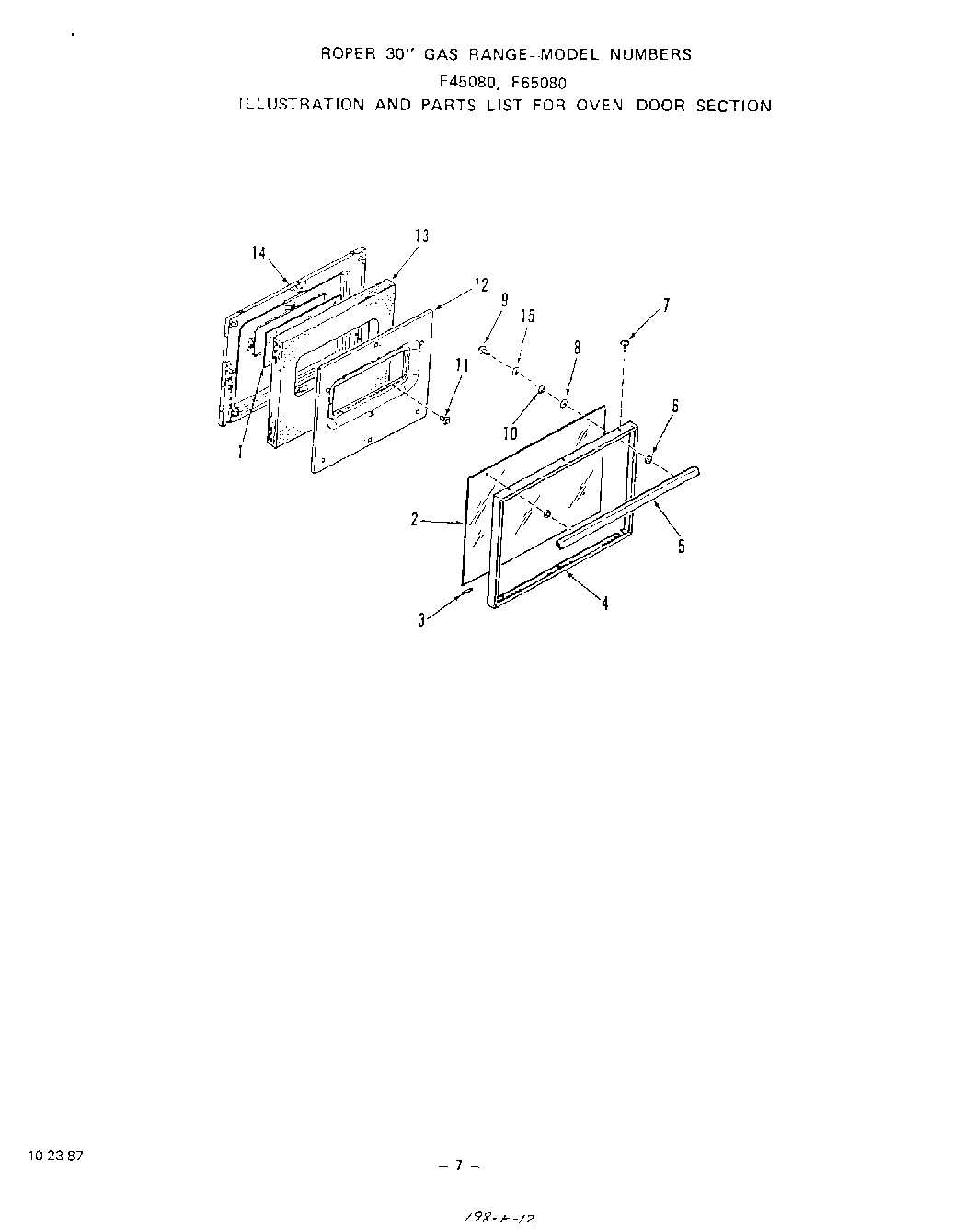

F4508L0 06 – OVEN DOOR

Products

Position	Product
1	Glass-Inner Oven Door
2	Outer Glass
3	Cushion-Door Glass
4	Frame
5	Handle
6	Spacer
7	Screw
8	Washer
9	Screw 10-32x3/4``
10	Spacer-Glass
11	Screw 10 - 32x3/8``
12	Retainer
13	Insulation
14	Lining-Oven Door
14	Lining-Oven Door (14451A Models)
15	Washer
