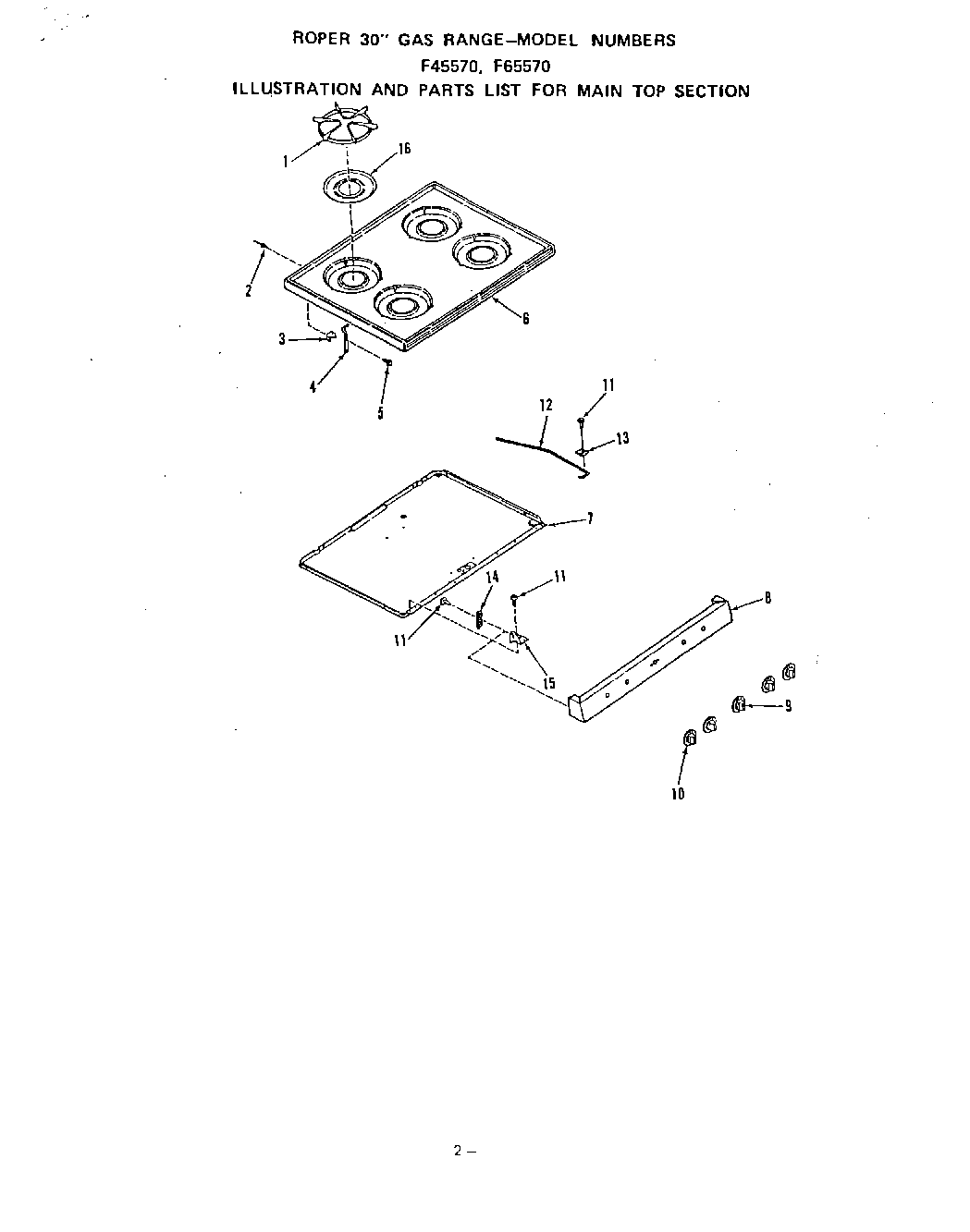

| 1 | Top Grate (4 Req) |
| 2 | Rivet |
| 3 | Hinge Bracket |
| 4 | Hinge |
| 4 | Right |
| 4 | Left |
| 5 | WPL 321162 |
| 6 | Main Top |
| 6 | Main Top (Almond) |
| 6 | Chrome |
| 6 | Main top (White) |
| 7 | Burner Box Bottom |
| 8 | Manifold Panel |
| 8 | Manifold Panel |
| 8 | Almond |
| 8 | White |
| 9 | Thermostat Knob |
| 10 | Gas Valve Knob |
| 11 | Screw 10-16x7/16`` |
| 12 | Support Rod |
| 13 | Clamp |
| 14 | Body Side Cleat |
| 15 | Manifold Panel Bracket |
| 15 | Manifold Panel Bracket (Left) |
| 15 | Manifold Panel Bracket (Right) |
| 16 | Spill Bowl |
