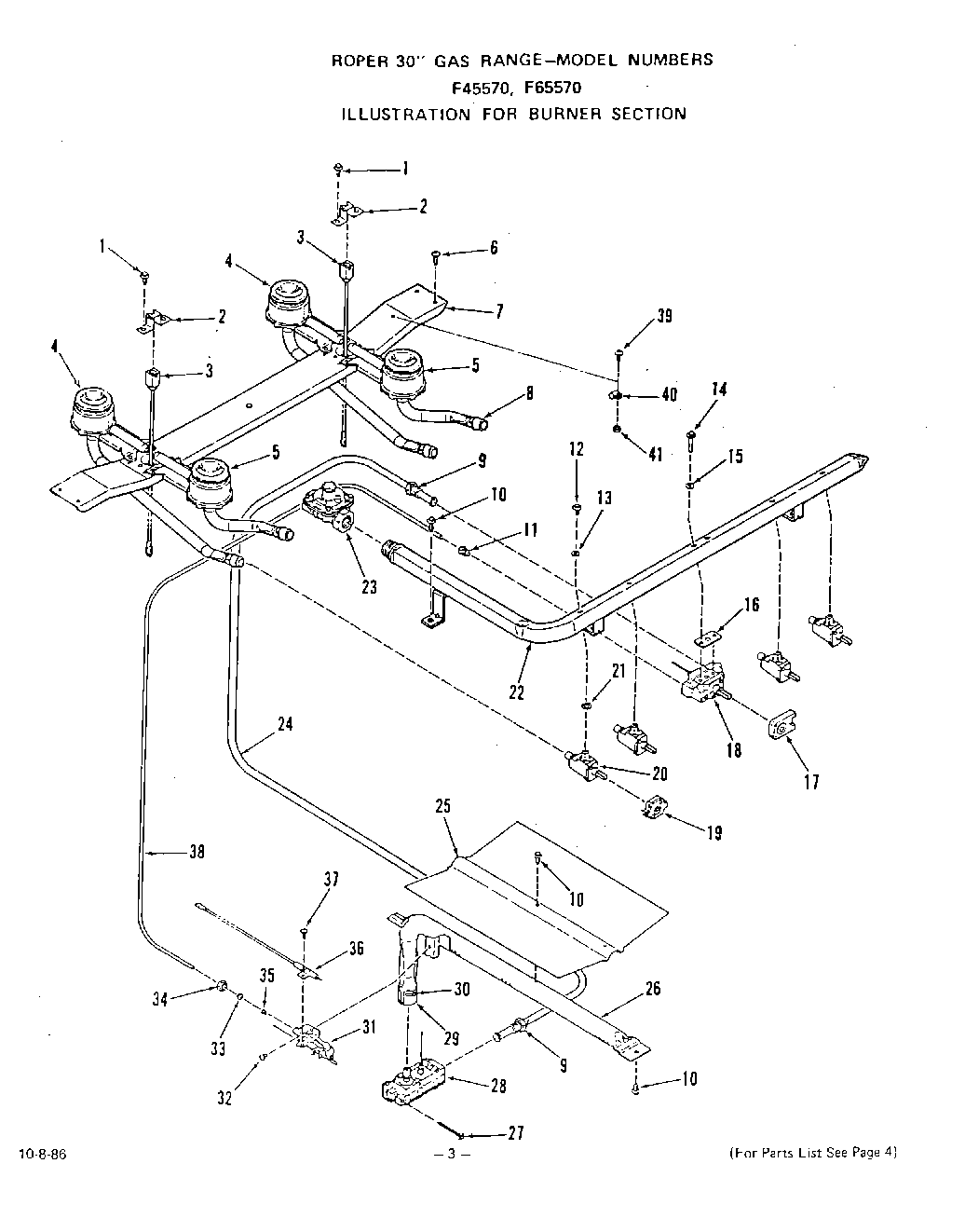

F4557W0 04 – BURNER

Products

Position	Product
1	Screw 8 – 32×3/8“
2	panel, side l.h. (almond panel, side r.h.)
2	Left
2	Electrode (Left)
3	xElectrode
4	Rear Burner-Lt. or Rt.. (Inc`s. Key 8)
5	Front Burner-Lt. or Rt. (Inc`s. Key 8)
6	Screw 6-20×3/8“
7	Support-Top Burner
8	Air Shutter
9	Inverted Nut 3/8“
10	Screw 10-16×7/16“
11	Loxit Nut 3/16“
12	Mounting Screw (Inc`s 86)
13	Silicone Rubber Gasket (For Key 26)
14	Mounting Screw (2 Req. for 114)
15	Gasket (For 83)
16	Silicone Rubber Gasket
17	WPL 318432
18	Thermostat (Inc`s Key 16)
19	Panel, Side L.H. (White)
20	Gas Valve (4 Req) (Inc`s. 20)
21	Silicone Rubber Gasket
22	Manifold Pipe
23	Pressure Regulator
24	Tubing 3/8“
25	Baffle – Oven Burner
26	Oven Burner (Inc`s. 19, 32 & 33)
27	Screw 10-32 x 2“
28	Control Valve (Inc`s. 27 & 31)
29	Air Shutter
30	Adjustment Screw -Air Shutter
31	Pilot Only (Inc`s 90)
32	Screw 10-24×1/4“
33	Compression Ball Sleeve 3/16“
34	Compression Nut 3/16“
35	Orifice Cup Only (For 94)
36	Electrode-Oven Spark Igniter
37	Screw 6Ax3/8“
38	Tubing 3/16“ -Oven Therm. To Oven Control Pilot
39	Screw 8-32 x 3/8“
40	Clip
41	Keps Nut 8-32
