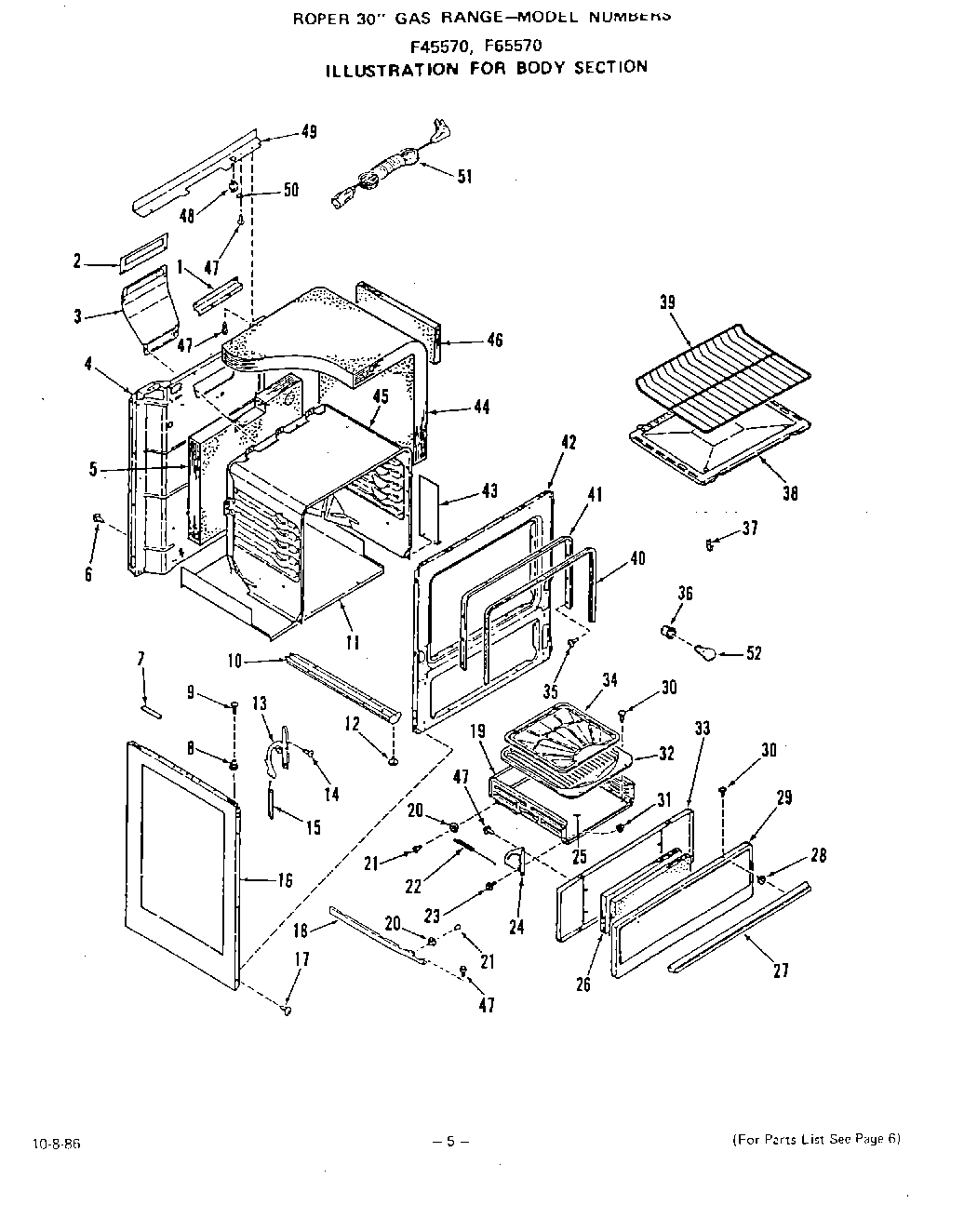

F4557W0 05 – BODY

Products

Position	Product
1	Flue Deflector Support
2	WPL 329314
3	Flue Deflector
4	Main Back
5	Insulation-Oven Back
6	WP112432 Whirlpool Nut Assembly
7	Spacer-Main Top
8	Strike
9	Screw 6-32×7/8“
10	Base w/Levelers-Lt. or Rt.
11	Bottom-Main
12	Leg Leveler (4 Req)
12	Hinge-Main Top (Right)
12	Hinge-Main Top (Left)
13	xHinge-Oven Door
14	Screw
15	Spring-Oven Door (Lt. or Rt.)
16	Body Side (Black)
16	Body side (White)
16	Body Side
16	Body Side (Almond)
17	Screw 10ABx1/2“
18	Right
18	Broiler Drawer Guide (Inc`s. 20, 21)
18	WP691371 Whirlpool Belt
19	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
20	Roller
21	Shoulder Rivet
22	WPL 327481
23	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
23	Bolt-Shoulder
23	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
24	xHinge-Broiler Drawer
25	WPL 331554
27	Handle
28	spacer-handle
29	Panel-Broiler Door
29	Panel-Broiler Door (Almond)
29	Panel-Broiler Door (White)
29	Front Panel-Broiler Door
30	Screw-10-32×1/2“
31	Keps Nut 10-24
32	Pan-Broiler (14451A M
33	Lining-Broiler Door (14451A Models)
34	WPL 331588
35	Screw 10ABx1/2“
36	Holder-Oven Lamp Bulb
37	Thermostat Bulb Clip (2 Required)
38	WPL 327084
38	Oven Bottom
38	WPL 331539
39	WPL 326068
40	WPL 326047
41	main chassis (almond)
42	Front Frame
43	WPL 328984
44	Insulation-Oven Top & Sides (1 Piece)
45	Oven Body
45	Oven Body (14451A Models)
45	Oven Body
46	W10820036 Whirlpool Door Switch Kit
47	Screw 10-16×7/16“
48	Disconnect
49	Cover-Backguard Bottom Wire
50	WPL 109266
