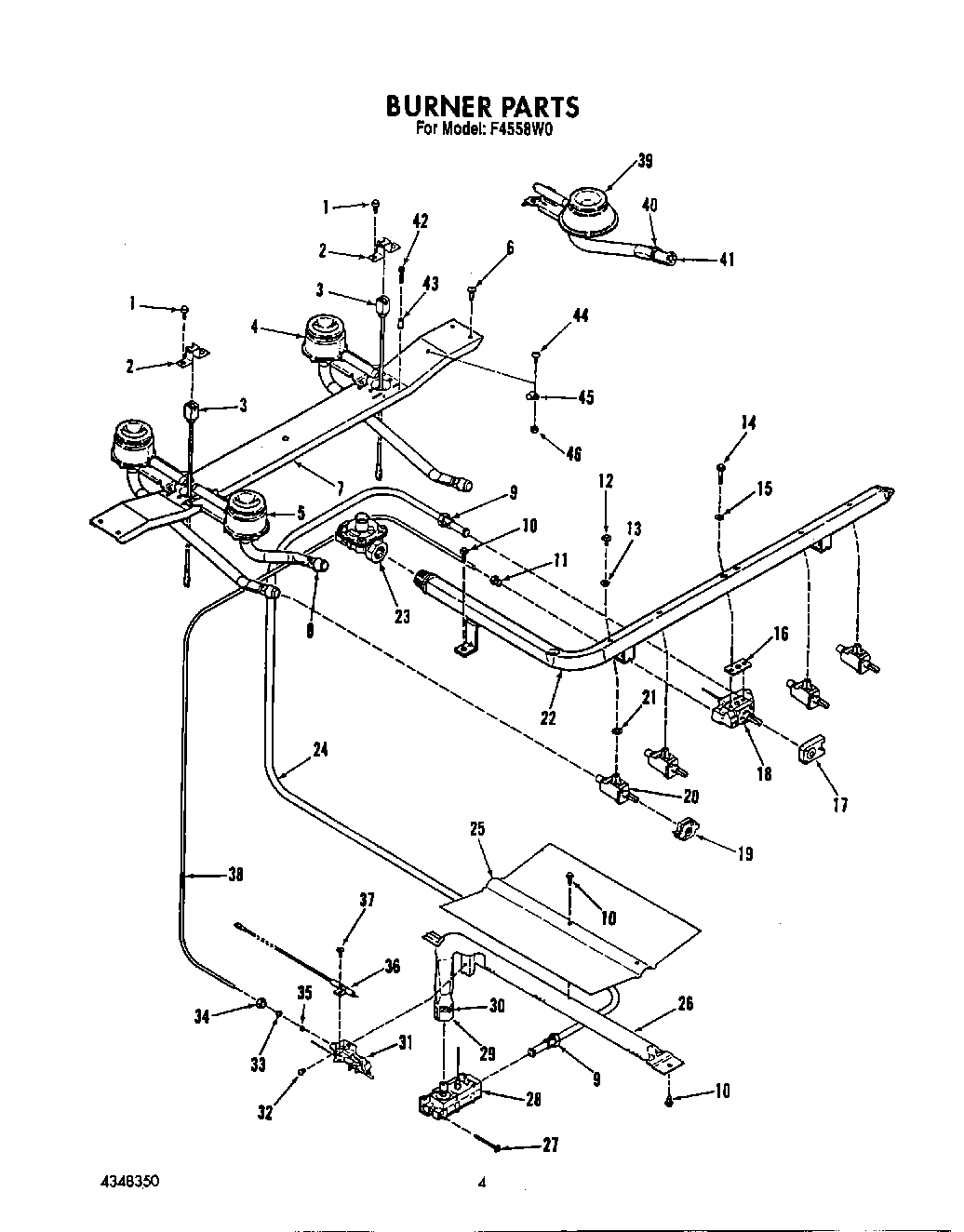

| 1 | WP489128 Whirlpool Refrigerator Screw |
| 2 | Bracket-Ignitor (Lt or Rt) |
| 3 | Electrode (Right) |
| 3 | Electrode (Left) |
| 4 | Burner-Rear, Lt. or Rt. (Incl. No.8) |
| 5 | Burner, Front-Lt. or Rt. (Incl. No.8) |
| 6 | Screw No.6-20x3/8 |
| 7 | Support, Top Burner |
| 8 | Air Shutter |
| 9 | Nut, Inverted 3/8 |
| 10 | SCREW |
| 11 | Nut, Loxit |
| 12 | Screw, Mounting-1 Each-illus. 10 & 20 |
| 13 | Seal (for No.26) |
| 14 | Screw |
| 15 | Seal |
| 16 | Seal |
| 17 | Switch, Thermostat |
| 18 | Thermostat, (Inc`s No.16) |
| 19 | Switch, Gas Valve |
| 20 | Valve, Gas (Right Front) |
| 20 | Gas Valve (LF, LR and RR) |
| 21 | Seal, Valve-1 ea. Illus. 10 & 20 |
| 22 | Manifold Pipe |
| 23 | Regulator-Pressure |
| 24 | 3/8 Tubing (Inc`s No.9) |
| 25 | Baffle, Oven Burn |
| 26 | Burner Assembly, (Inc`s 25, 29, 30) |
| 27 | Screw, No.10-32 x 2 |
| 28 | Control Valve, (Inc`s No.31 ,35) |
| 29 | Shutter, Air |
| 30 | Screw, Adjustment-Air Shutter |
| 31 | Pilot (Inc`s 35) |
| 32 | Screw, No.10-24 x 1/4 |
| 33 | Compression Sleeve |
| 34 | Compression Nut |
| 35 | Orifice Cup |
| 36 | Electrode |
| 37 | Screw |
| 38 | Tubing 3/16 |
| 39 | Rt. Front Burner (Inc`s 22 & 23) |
| 40 | Adjustment Screw |
| 41 | Shutter, Air |
| 42 | Screw No.6-32x7/8 |
| 43 | Eyelet |
| 44 | Screw, No.8-32 x 3/8 |
| 45 | Clip (For No.1) |
| 46 | WP488130 Whirlpool Air Conditioner Nut |
