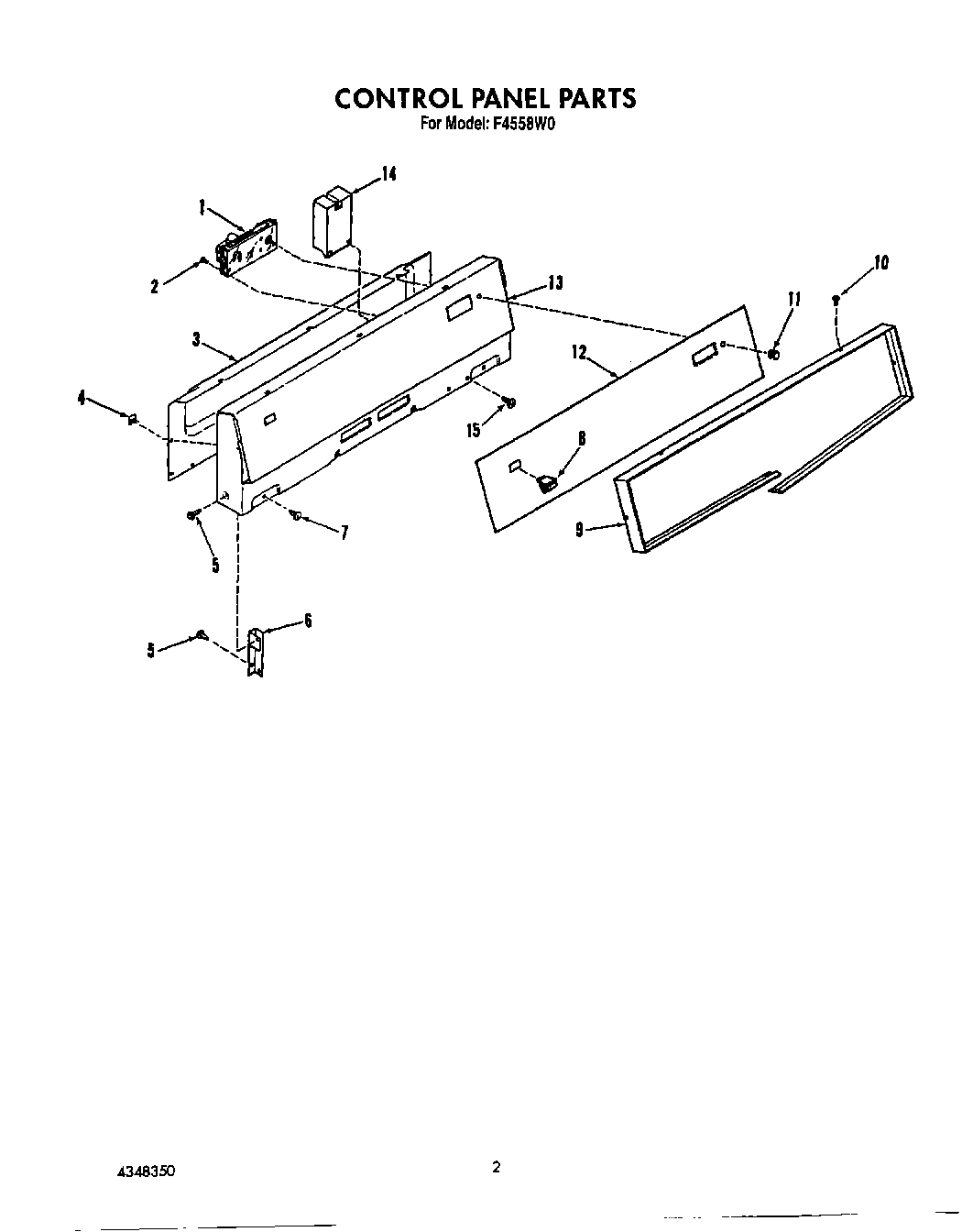

F4558W0 02 – CONTROL PANEL, LITERATURE

Written by

Products

Position	Product
	Repair Parts List
	Use & Care Guide
	Installation Guide
1	Clock
2	Screw
3	Cover, Wire
4	Clip
5	SCREW
6	Support (Left)
6	Support (Right)
7	WP308685 Whirlpool Microwave Screw
8	WP4314961 Whirlpool Lite Switch
9	Frame, Bezel
10	Screw
11	Knob, Clock
12	Insert-Backguard
13	Backguard
14	WPL 4334842
15	Screw, No.13-16 x 1/2
