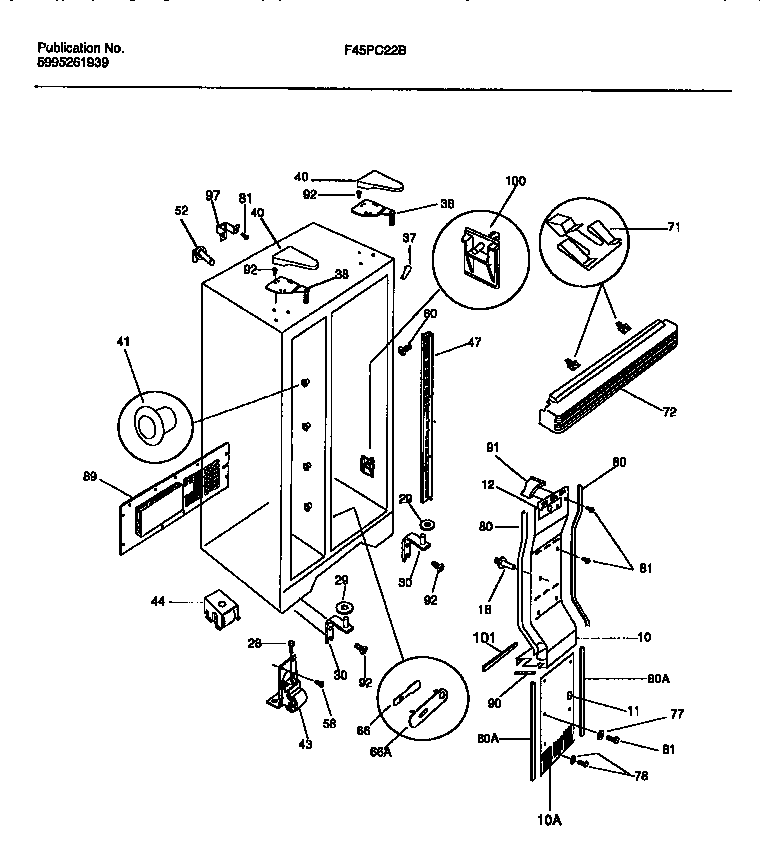

F45PC22BD0 04 – CABINET, LIGHT SHIELDS, MULLION

F45PC22BD0 04 – CABINET, LIGHT SHIELDS, MULLION

Written by

in

F45PC22BD0 04 – CABINET, LIGHT SHIELDS, MULLION

Products

PositionProduct
*25204TOUCH, UP PAINT, ALMOND (NI)
*25202WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*25203PLUG, BUTTON, CABINET LINER (NI)
10WCI 5303289495
10AWCI 215637400
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18SUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29WCI 215314300
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30TAPPING PLATE, LH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, ALMOND
38BRACKET, UPPER HINGE, W/CLOSER, WHITE
40WCI 5303288946
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
47WCI 5303288974
52WCI 215456400
52PLUG-WTR INLET TUBE
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66AWCI 218171301
71WCI 215003300
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 5303289508
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80AWCI 218249801
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
100SUPPORT-PAN COVER
101WCI 215305702
