F45QR20CD0 04 – CABINET

F45QR20CD0 04 – CABINET

Written by

in

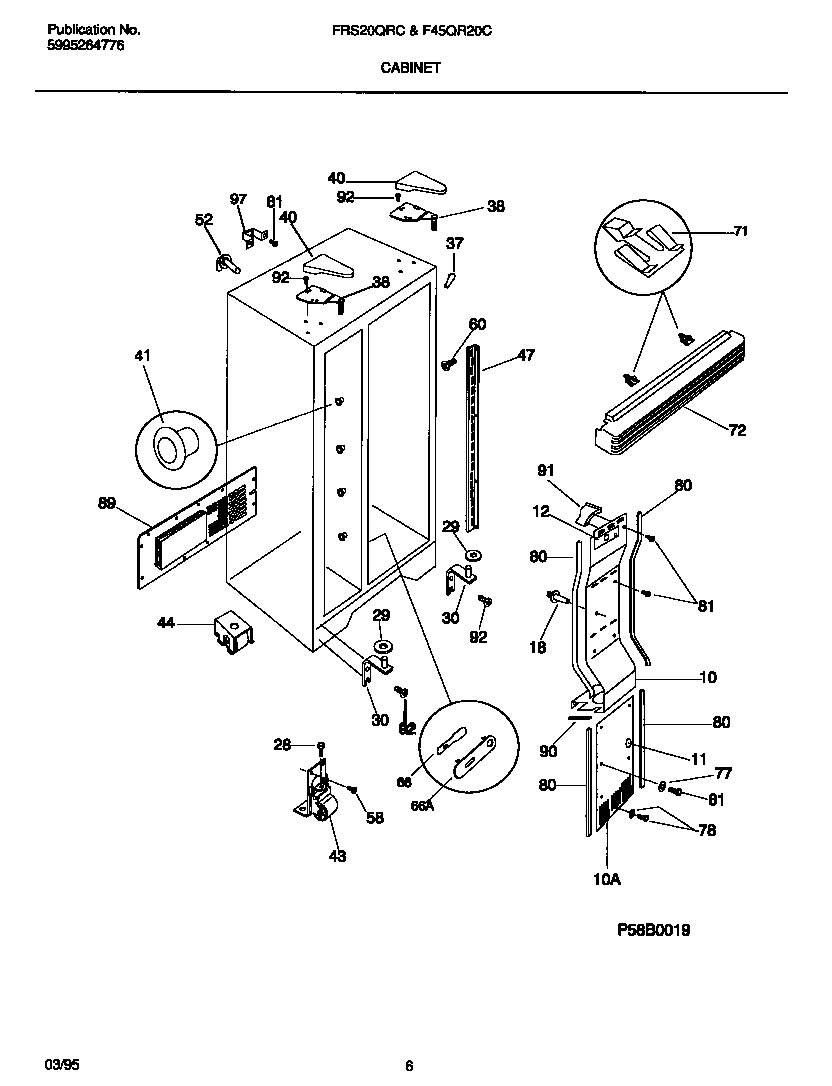

F45QR20CD0 04 – CABINET

Products

PositionProduct
*82403CLIP-CABLE
*82404PLUG, BUTTON, CABINET LINER (NI)
*82405TOUCH, UP PAINT, ALMOND (NI)
*82402WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 5303289038
10WCI 5303289035
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
18AWCI 5303289043
28WCI 5303289062
29AWCI 215003200
29BWCI 215314300
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
30ABRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30CTAPPING PLATE, RH (NOT ILLUSTRATED)
37WCI 530320340
38WCI 218215209
40WCI 5303288946
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
43AWCI 5303289059
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
47WCI 5303288974
52BPLUG-WTR INLET TUBE
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359608
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 215175300
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
