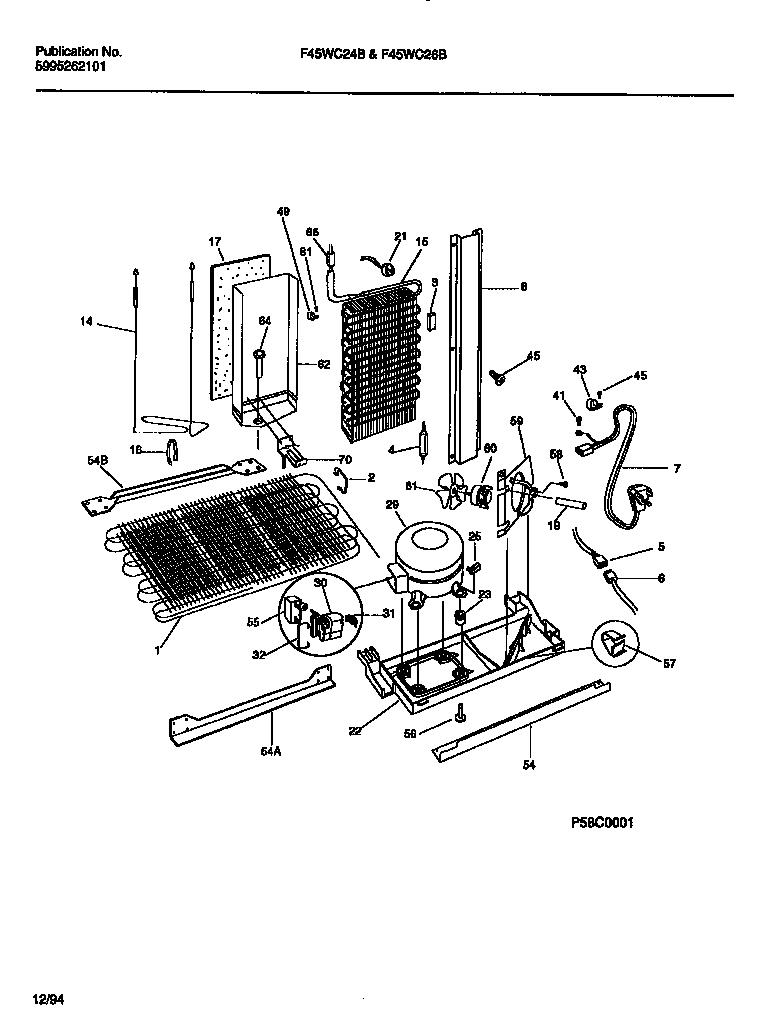

F45WC24BD0 09 – COOLING SYSTEM

F45WC24BD0 09 – COOLING SYSTEM

Written by

in

F45WC24BD0 09 – COOLING SYSTEM

Products

PositionProduct
*93768WCI 5303917166
1WCI 215408100
1SPACER TUBE
1SPACER-COND TUBE,BLACK
2WCI 5303289029
3WCI 215226501
3BLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
5HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
5WCI 218412900
6WCI 215501701
7WCI 215459201
8WCI 5303289033
14WCI 215752000
15EVAPORATOR, W/HEAT EXCHANGR
15TUBE-INLET (NOT ILLUSTRATED)
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19TUBE-RUBBER
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303917193
30WCI 216008900
315303271616 Frigidaire Refrigerator P1-Overload
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435308000133 Frigidaire Refrigerator Clamp
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
455304455852 Frigidaire Refrigerator Screw
49WCI 215506900
54AWCI 5303289311
54WCI 5303289027
54BWCI 5303289292
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 215073800
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
61WCI 215004700
61WCI 215004800
62WCI 215048700
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
