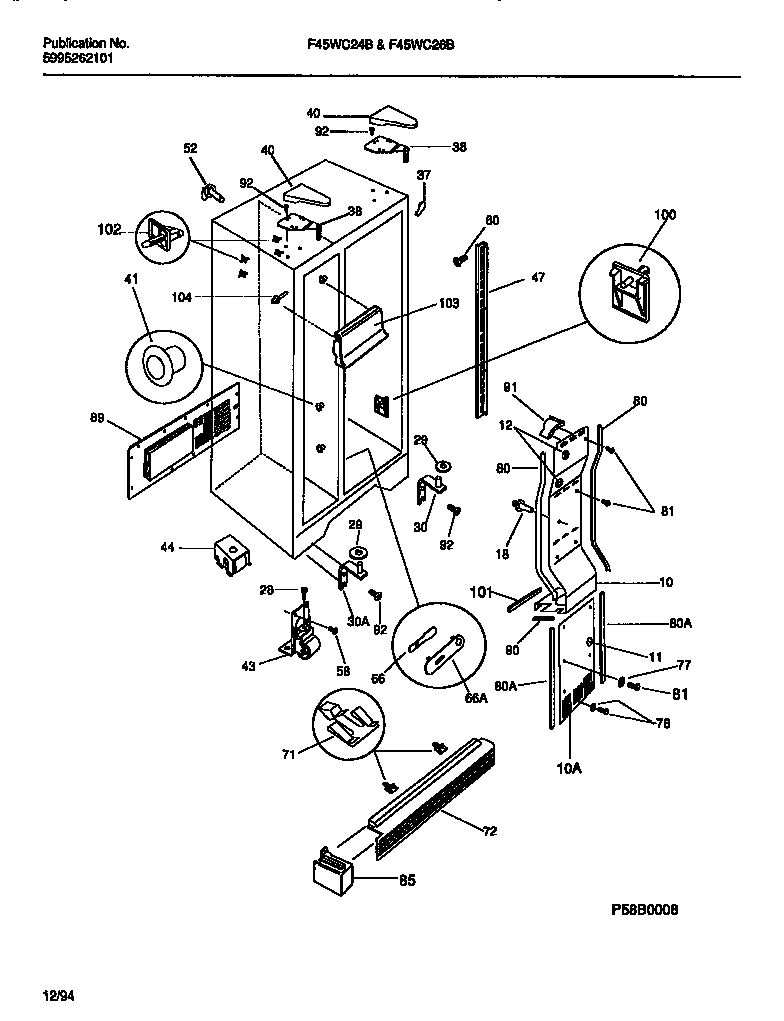

F45WC26BD0 05 – CABINET, LIGHT SHIELDS, MULLION

F45WC26BD0 05 – CABINET, LIGHT SHIELDS, MULLION

Written by

in

F45WC26BD0 05 – CABINET, LIGHT SHIELDS, MULLION

Products

PositionProduct
10WCI 5303297838
10AWCI 215637400
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18SUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29WCI 215598900
30WCI 215008900
30AWCI 215009100
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30TAPPING PLATE, LH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, ALMOND
38WCI 218215205
40WCI 5303288946
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
47WCI 5303288974
52WCI 21545600
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66AWCI 218171301
71WCI 215003300
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 5303295758
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
78WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80AWCI 218249801
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
