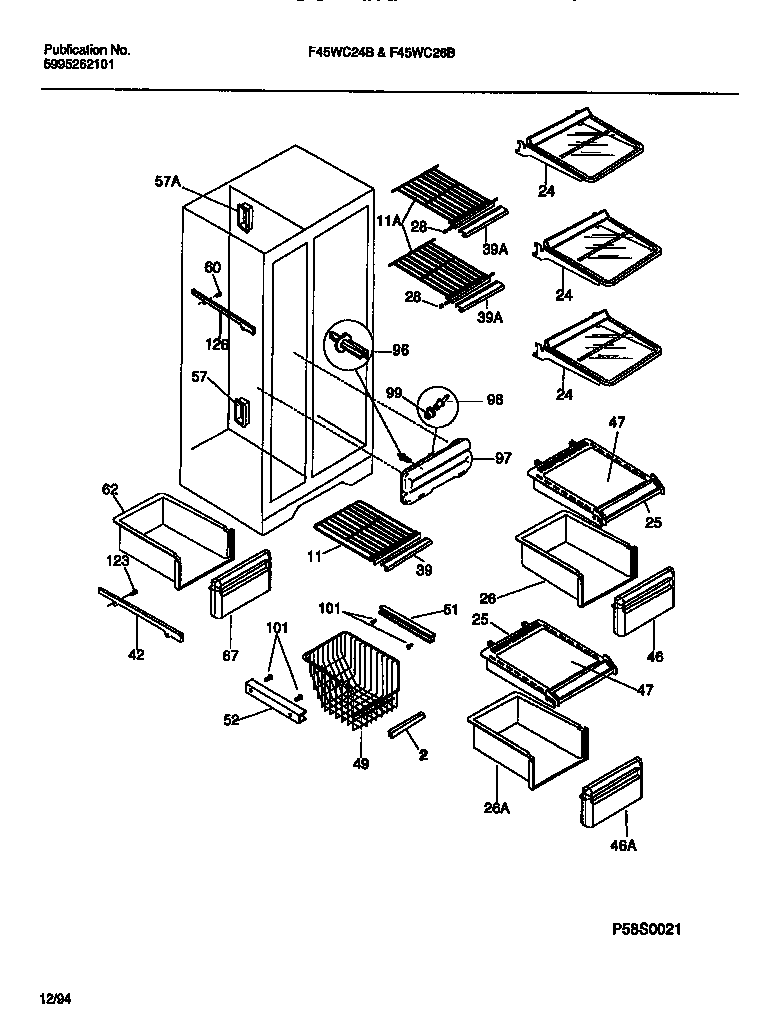

F45WC26BD0 07 – SHELVES, WATER TANK, 3-DOOR MULLION

F45WC26BD0 07 – SHELVES, WATER TANK, 3-DOOR MULLION

Written by

in

F45WC26BD0 07 – SHELVES, WATER TANK, 3-DOOR MULLION

Products

PositionProduct
*93766WCI 215339900
2WCI 5303298147
11WCI 5303296574
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
11ASHELF-FREEZER, FIXED WIRE
24WCI 215406104
25WCI 5303299053
25TRIM-STORAGE PAN CVR,LOWER
255303307715 Frigidaire Refrigerator Humidity Control
25COVER-STORAGE PAN
26A5303289501 Frigidaire Refrigerator Lower Storage Pan Os1
265303289500 Frigidaire Refrigerator Upper Storage Pan
28END CAP-SHELF, PROTECTOR, LOWER FZR SHELF
39AWCI 215217558
39WCI 215217543
42HANGER-PAN/TRAY, RH
42WCI 215002301
46A5304411659 Frigidaire Refrigerator Front Storage Pan
47WCI 215530500
47WCI 5303289387
49WCI 5303296573
51WCI 5303296575
52215162502 Frigidaire Refrigerator Basket Hanger
57WCI 5303271653
57AWCI 5303289064
605304455852 Frigidaire Refrigerator Screw
62WCI 5303289517
67WCI 5303296579
96WCI 215192600
975303918258 Frigidaire Refrigerator P-1 Water Tank Kit
98CONNECTOR – TUBE
99WCI 530018657
1015304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
126RAIL-AUGER BUCKET, RH (NOT ILLUSTRATED)
126WCI 215205400
