F45WJ26HD1 04 – CABINET

F45WJ26HD1 04 – CABINET

Written by

in

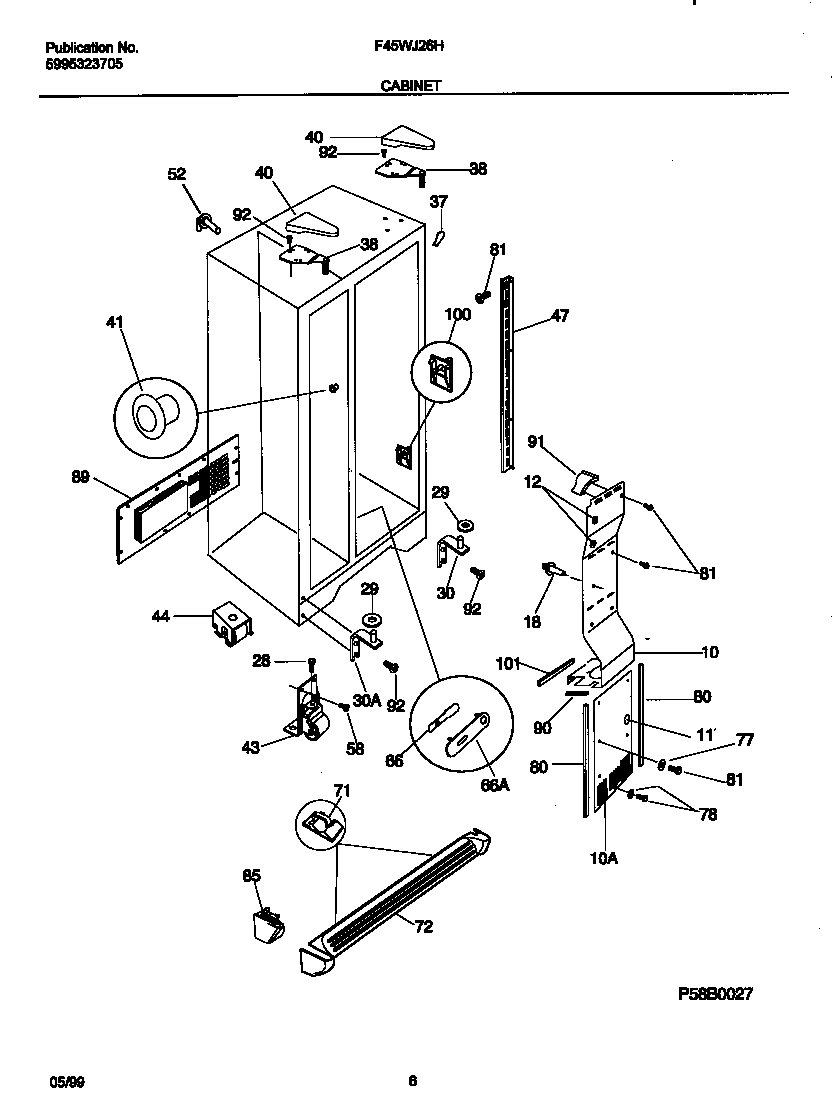

F45WJ26HD1 04 – CABINET

Products

PositionProduct
*36134WCI 5303322647
*36131SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*36127WCI 215598900
*36133WCI 5303289037
*36129WCI 218730800
*36132WCI 5303289036
*36137WASHER, .28 X .62 X .19, NYLON
*36136WCI 218902101
*36128WCI 218871201
*36126SUPPORT-AIR DUCT CVR,1.83“ LONG
*36125NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*36135PLUG, BUTTON, CABINET LINER (NI)
*361305304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*36139TOUCH, UP PAINT, ALMOND (NI)
10AWCI 215637401
10WCI 215637602
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 215008900
30AWCI 215009100
30BWCI 218730700
37WCI 5303321082
38BWCI 218215224
38AWCI 218215222
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359804
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
