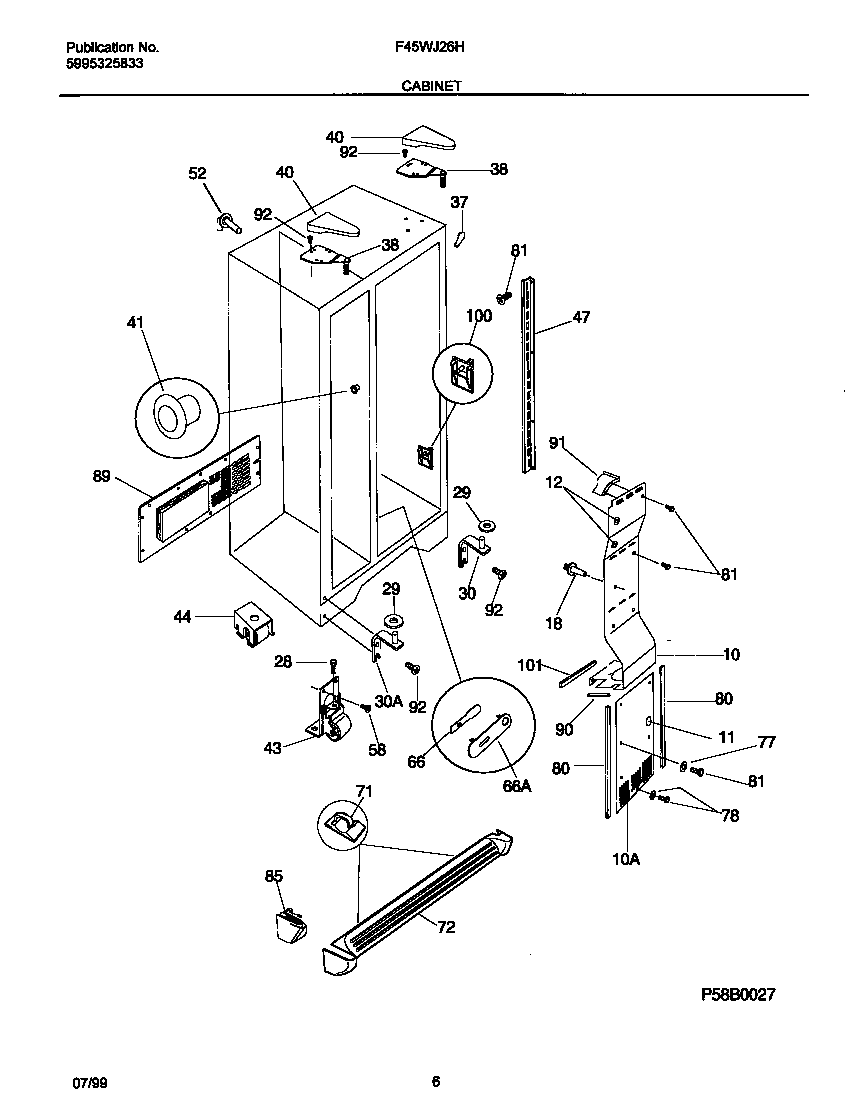

F45WJ26HW2 04 – CABINET

F45WJ26HW2 04 – CABINET

Written by

in

F45WJ26HW2 04 – CABINET

Products

PositionProduct
*65774WCI 5303322647
*65766SUPPORT-AIR DUCT CVR,1.83“ LONG
*65773WCI 5303289037
*65771SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*65769WCI 218730800
*65767WCI 215598900
*65772WCI 5303289036
*65775WCI 218902101
*65768WCI 218871201
*65765NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*65779PLUG, BUTTON, CABINET LINER (NI)
*657775303321319 Frigidaire Refrigerator White Touch Up Paint
*657705304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*65776WASHER, .28 X .62 X .19, NYLON
10AWCI 215637401
10WCI 215637602
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BWCI 218730700
30WCI 215008900
30AWCI 215009100
37WCI 5303321081
38AWCI 218215217
38BWCI 218215219
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922702
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
