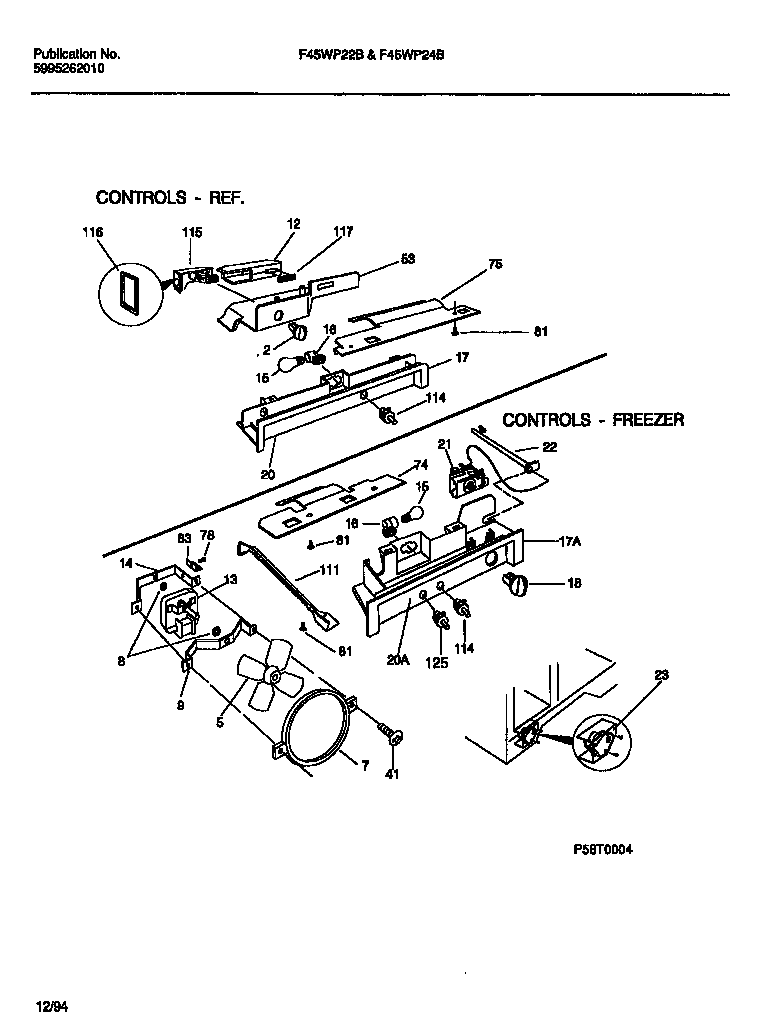

F45WP22BD0 07 – REFRIGERATOR & FREEZER CONTROLS

Products

Position	Product
*61966	SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
2	WCI 215028602
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
12	WCI 215901100
13	WCI 215348100
13	215474201 Frigidaire Refrigerator Washer
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17A	CONTROL BOX, FRZR
17	WCI 5303296805
18	WCI 215051002
20	WCI 5303296804
20A	WCI 5303300036
21	WCI 5303300027
22	WCI 3018891
23	SHIELD-DEFROST TIMR,BTM
23	COVER-DEFROST TIMER, TOP
23	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41	5308000039 Frigidaire Refrigerator Screw
41	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53	WCI 215553300
74	WCI 5303289516
75	WCI 5303289052
78	5304455651 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
111	WCI 5303289024
114	5303289051 Frigidaire Refrigerator Light Switch
115	WCI 215011501
116	WCI 215011400
117	WCI 215011700
125	WCI 215334201
