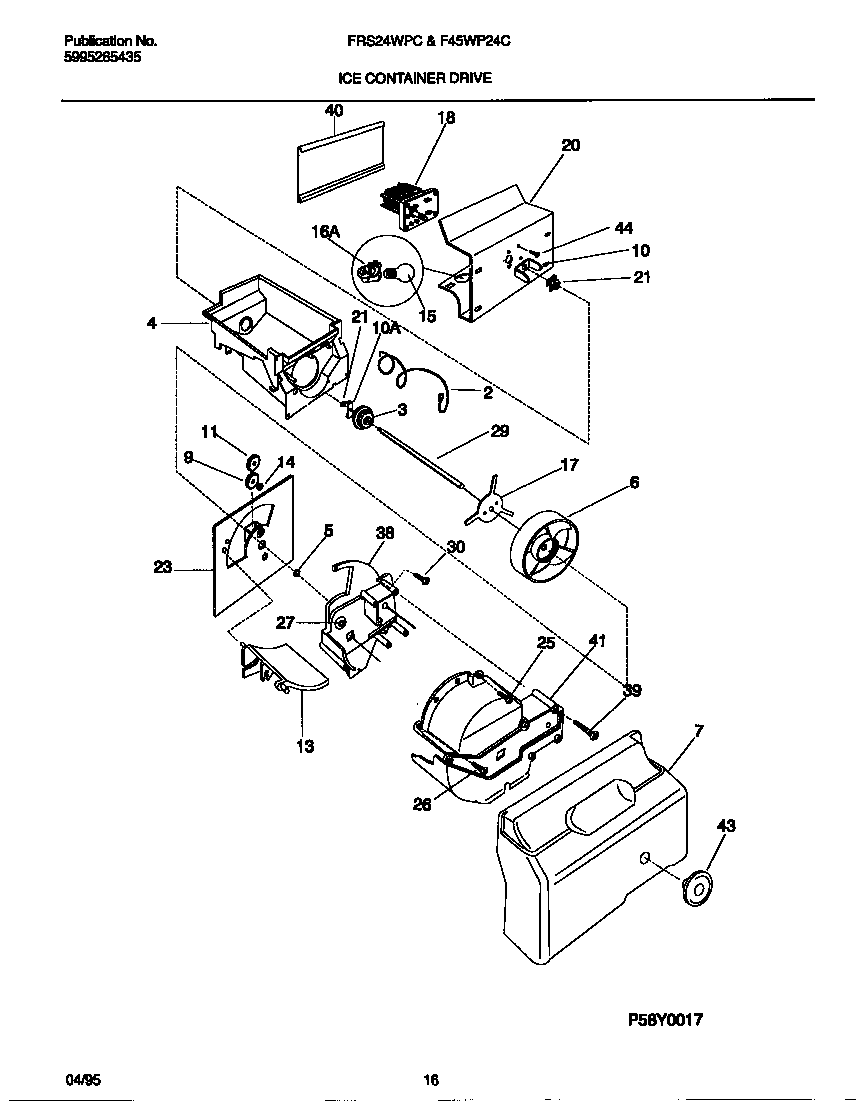

F45WP24CW0 09 – ICE CONTAINER DRIVE

Products

Position	Product
2	WCI 218232500
3	WCI 218232300
4B	LABEL-ICE CONTAINER (NOT ILLUSTRATED)
4A	WCI 218216800
5	WCI 215748105
6	WCI 215752800
7	WCI 215421603
9	WCI 215419700
10	WCI 218232800
10	241726501 Frigidaire Refrigerator Drive Bar
11	WCI 215755200
13	WCI 218285200
14	WCI 215419900
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17	WCI 215754800
18B	HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED)
18A	5304462594 Frigidaire Refrigerator Motor-Auger
20	WCI 215285301
23C	STUD (NOT ILLUSTRATED)
23A	WCI 215755300
23B	RING-RETAINER (NOT ILLUSTRATED)
25	WCI 215421400
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215748400
29	WCI 215757501
30	WCI 215757300
38	WCI 218270100
39	WCI 215757000
40	WCI 215363000
41	WCI 218270200
43	WCI 215635000
44	WCI 218359200
