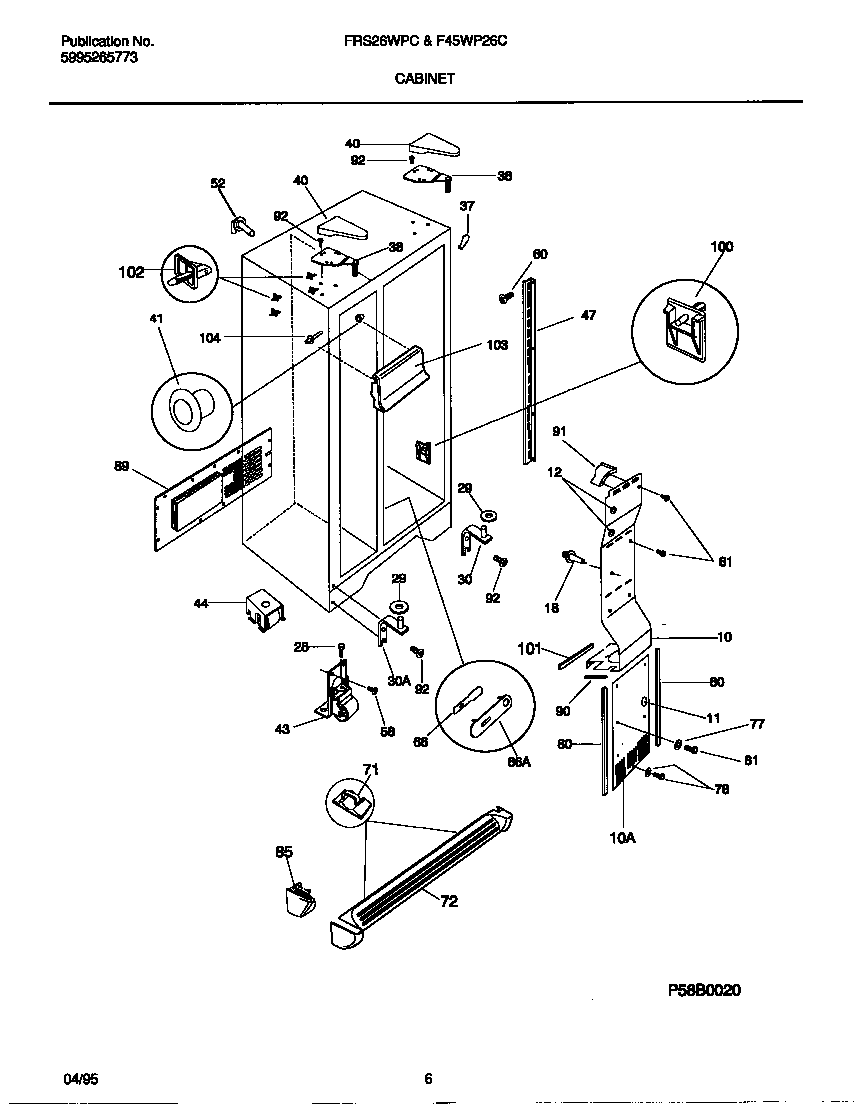

F45WP26CW0 04 – CABINET

F45WP26CW0 04 – CABINET

Written by

in

F45WP26CW0 04 – CABINET

Products

PositionProduct
*369675303321319 Frigidaire Refrigerator White Touch Up Paint
*36965WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10WCI 215637400
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
18AWCI 5303289043
28WCI 5303289062
29AWCI 215003200
29BWCI 215598900
30WCI 215008900
30ATAPPING PLATE, RH (NOT ILLUSTRATED)
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
30WCI 215009100
37TRIM-CABINET CORNER, WHITE
38WCI 218215205
40WCI 5303288945
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
43AWCI 5303289059
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
47WCI 5303288974
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249801
815304455650 Frigidaire Refrigerator Screw
85WCI 218359806
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104ASUPPORT-ICE ACCESS DR
104BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
