F45WR22CD1 02 – FREEZER DOOR

F45WR22CD1 02 – FREEZER DOOR

Written by

in

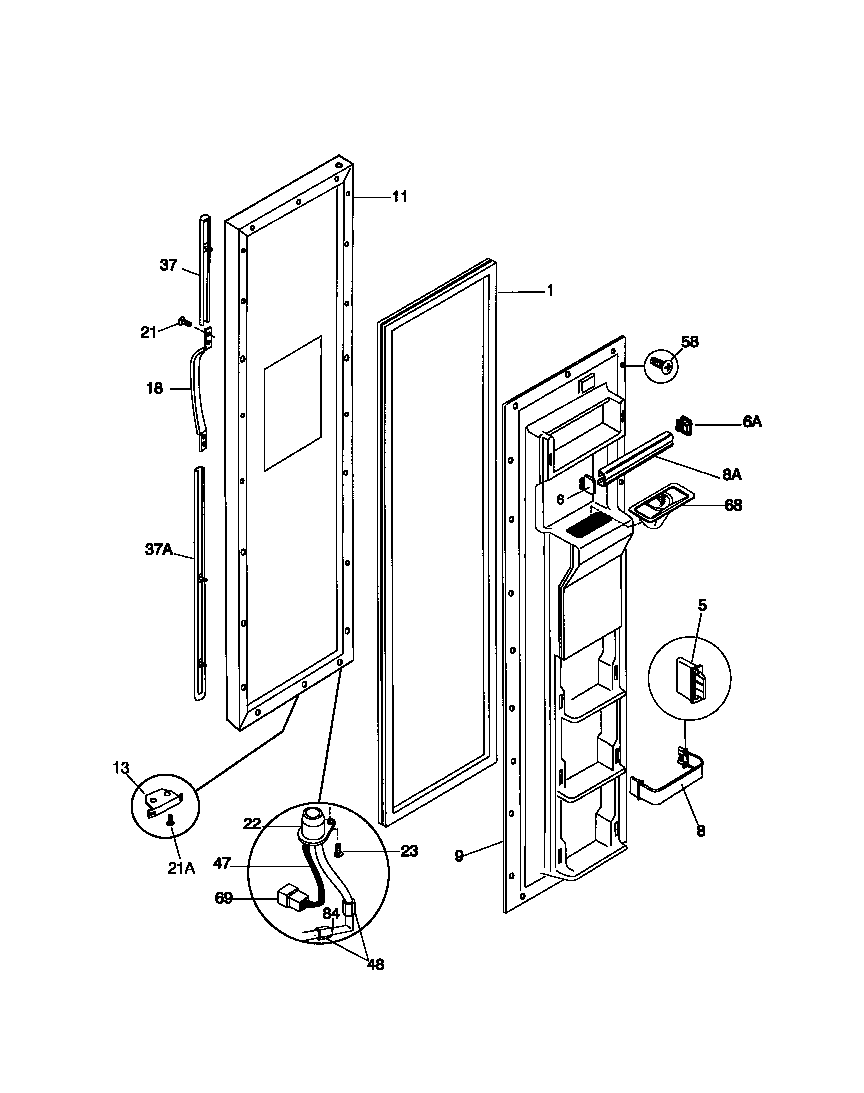

F45WR22CD1 02 – FREEZER DOOR

Products

PositionProduct
*65800INSULATION
1WCI 215734303
5WCI 5303288950
6AWCI 5303297814
6WCI 5303297813
8AWCI 215474043
8RACK-DOOR, W/END CAPS, (3)
9WCI 218510601
11WCI 5303917674
13WCI 5303289522
18WCI 215826404
21218843801 Frigidaire Refrigerator Screw
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 215615300
22AWCI 215598900
23WCI 5303001020
37WCI 215867043
37AWCI 215867044
47WCI 218485300
48NUT, 7/16 X 20, NYLON
585304455651 Frigidaire Refrigerator Screw
68WCI 218020600
69CONNECTOR-DOOR HARN
84WCI 5308010289
