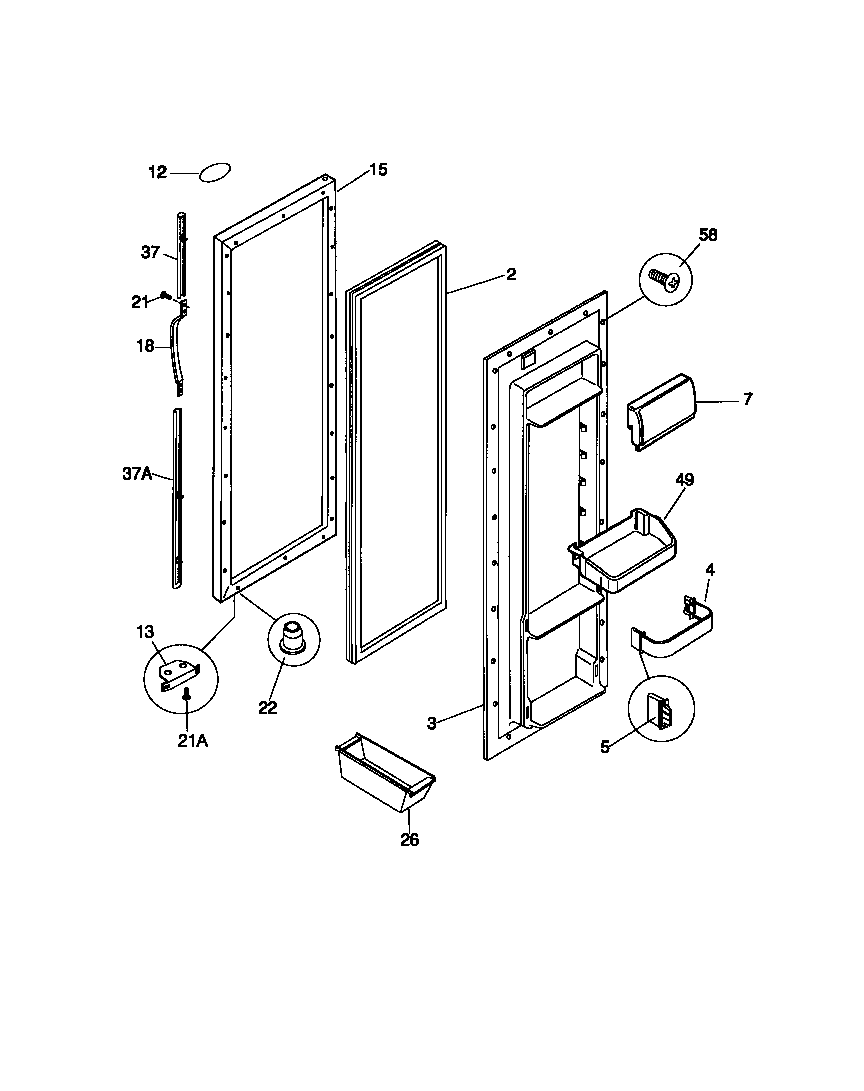

F45WR22CD1 03 – REFRIGERATOR DOOR

F45WR22CD1 03 – REFRIGERATOR DOOR

Written by

in

F45WR22CD1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*65801INSULATION
2WCI 215734304
3WCI 215390401
4WCI 215120401
5WCI 5303288950
7WCI 5303308608
12WCI 218364005
12AWCI 215008611
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15WCI 218069311
18WCI 215826404
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
37WCI 215867043
37AWIRE-GROUND, TEMP CONTROL
49WCI 218592308
585304455651 Frigidaire Refrigerator Screw
