F45WR22CW1 02 – FREEZER DOOR

F45WR22CW1 02 – FREEZER DOOR

Written by

in

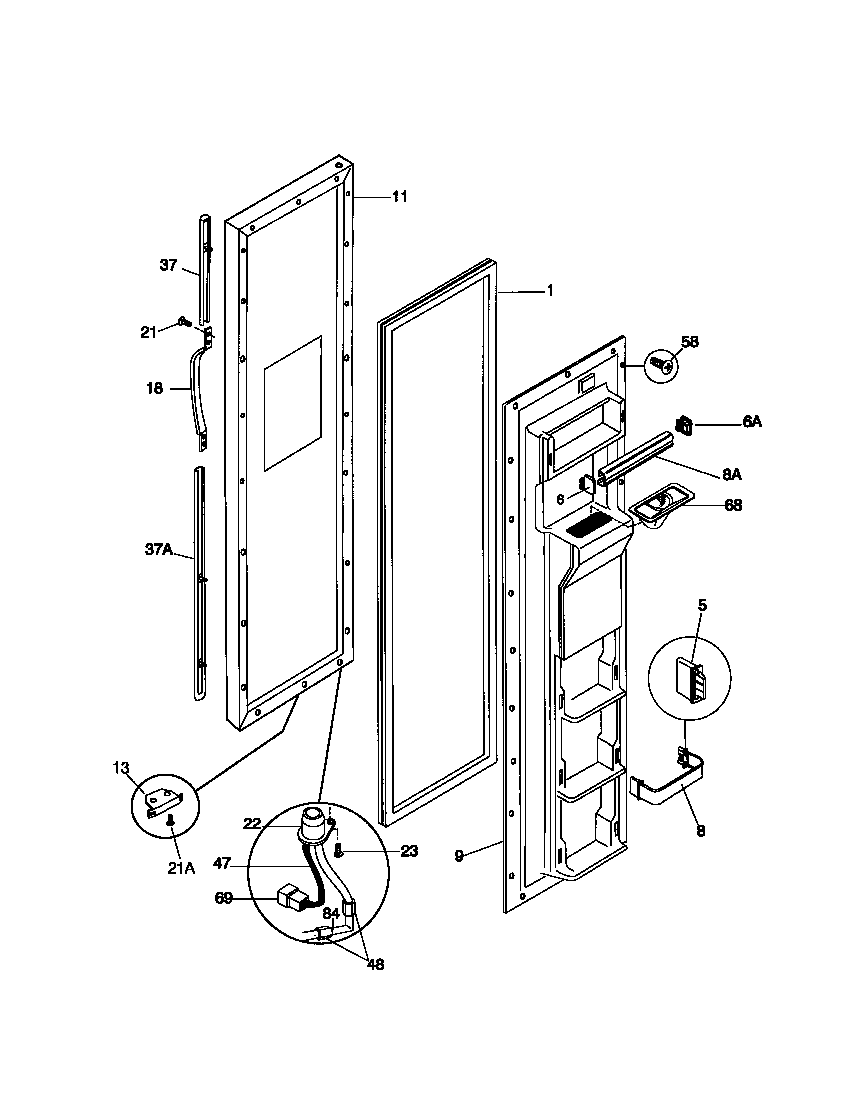

F45WR22CW1 02 – FREEZER DOOR

Products

PositionProduct
*65800INSULATION
1215734313 Frigidaire Refrigerator Door Gasket
5WCI 5303288950
6WCI 5303297813
6AWCI 5303297814
8RACK-DOOR, W/END CAPS, (3)
8AWCI 215474043
9WCI 218510601
11WCI 5303917673
13WCI 5303289522
18WCI 215826401
21218843801 Frigidaire Refrigerator Screw
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 215615300
22AWCI 215598900
23WCI 5303001020
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
37ATRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
47WCI 218485300
48NUT, 7/16 X 20, NYLON
585304455651 Frigidaire Refrigerator Screw
68WCI 218020600
69CONNECTOR-DOOR HARN
84WCI 5308010289
