F45WR22CW1 03 – REFRIGERATOR DOOR

F45WR22CW1 03 – REFRIGERATOR DOOR

Written by

in

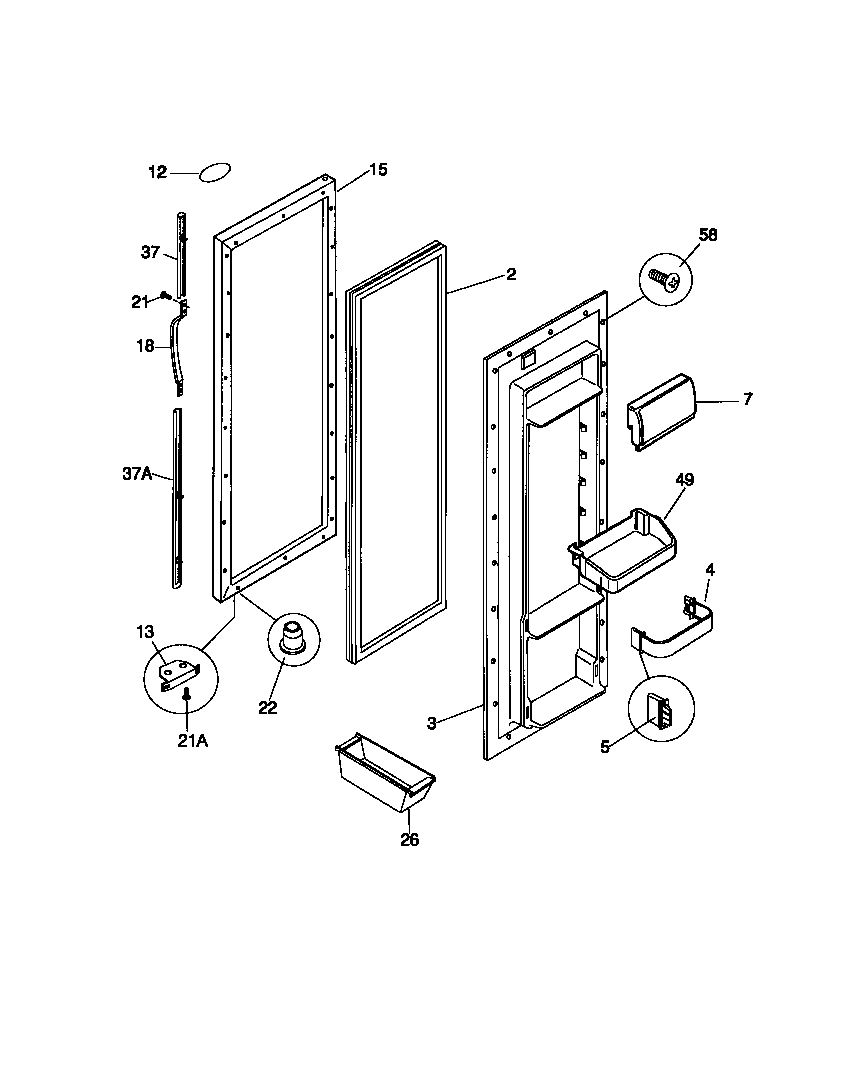

F45WR22CW1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*65801INSULATION
2WCI 215734314
3WCI 215390401
4WCI 215120401
5WCI 5303288950
7WCI 5303308608
12ALABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
12WCI 218364004
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15WCI 218069301
18WCI 215826401
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
37ATRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
49WCI 218592308
585304455651 Frigidaire Refrigerator Screw
