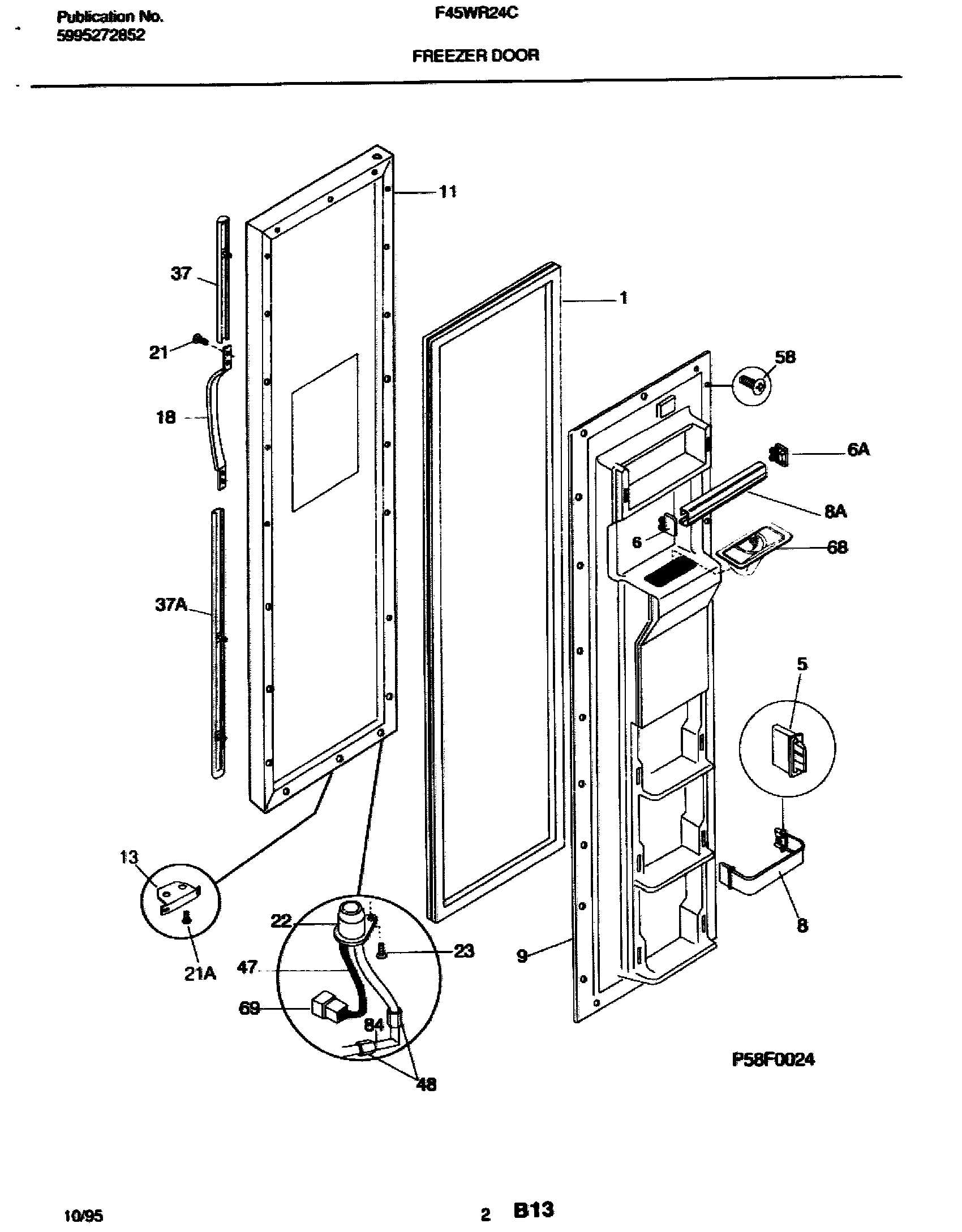

F45WR24CD1 03 – FREEZER DOOR

Products

Position	Product
NI	INSULATION
NI	WCI 215598900
1	WCI 215734303
5	WCI 5303288950
6A	WCI 5303297814
6	WCI 5303297813
8A	WCI 215474043
8	RACK-DOOR, W/END CAPS, (3)
9	WCI 218510601
11	WCI 5303917674
13	WCI 5303289522
18	WCI 215826404
21A	218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21	218843801 Frigidaire Refrigerator Screw
22	WCI 215615300
23	WCI 5303001020
37A	WCI 215867044
37	WCI 215867043
47	WCI 218485300
48	NUT, 7/16 X 20, NYLON
58	5304455651 Frigidaire Refrigerator Screw
68	WCI 218020600
69	CONNECTOR-DOOR HARN
84	WCI 5308010289
