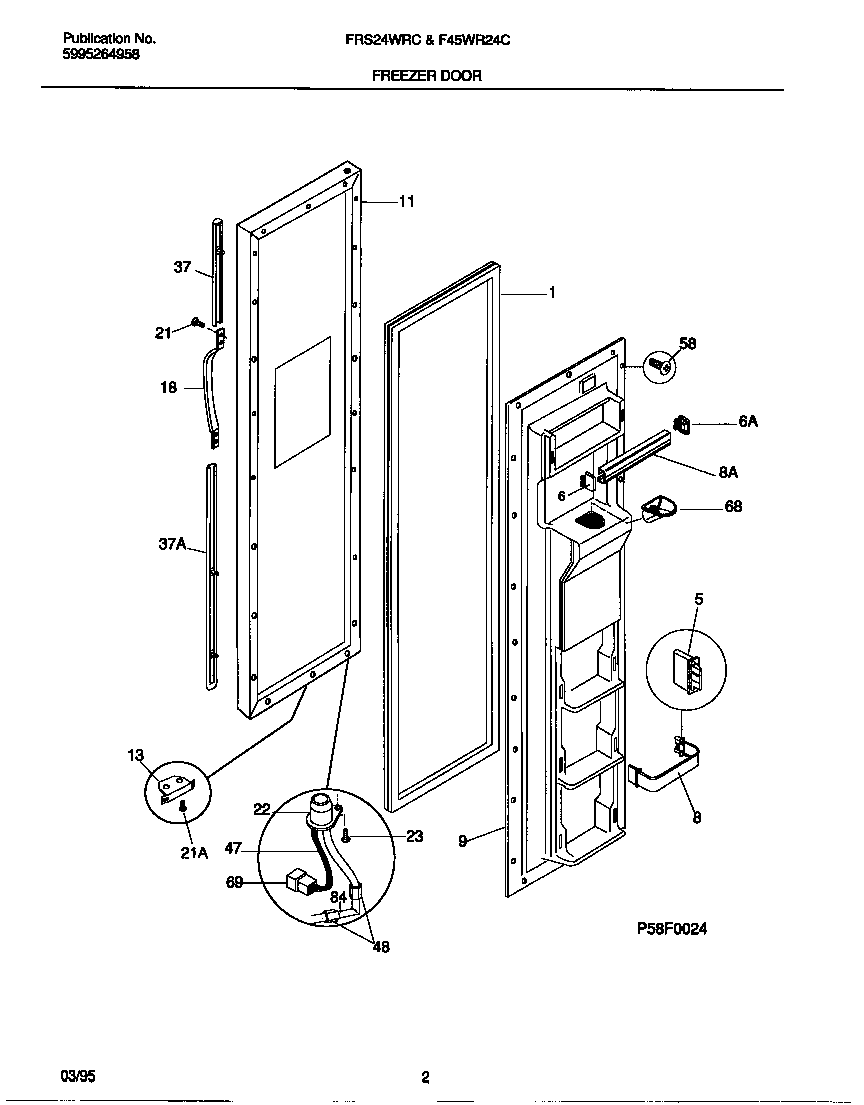

F45WR24CW0 02 – FREEZER DOOR

F45WR24CW0 02 – FREEZER DOOR

Written by

in

F45WR24CW0 02 – FREEZER DOOR

Products

PositionProduct
*00041INSULATION
*00040WCI 215598900
1215734313 Frigidaire Refrigerator Door Gasket
5WCI 5303288950
6WCI 5303297813
6WCI 5303297814
8RACK-DOOR, W/END CAPS, (3)
8WCI 215474043
9WCI 215201501
11WCI 218069501
13WCI 5303289522
18WCI 215826401
21WCI 215836900
21218843801 Frigidaire Refrigerator Screw
22WCI 215615300
23WCI 5303001020
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
37TRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
47WCI 218485300
48NUT, 7/16 X 20, NYLON
585304455651 Frigidaire Refrigerator Screw
68WCI 218036400
69CONNECTOR-DOOR HARN
84WCI 5308010289
