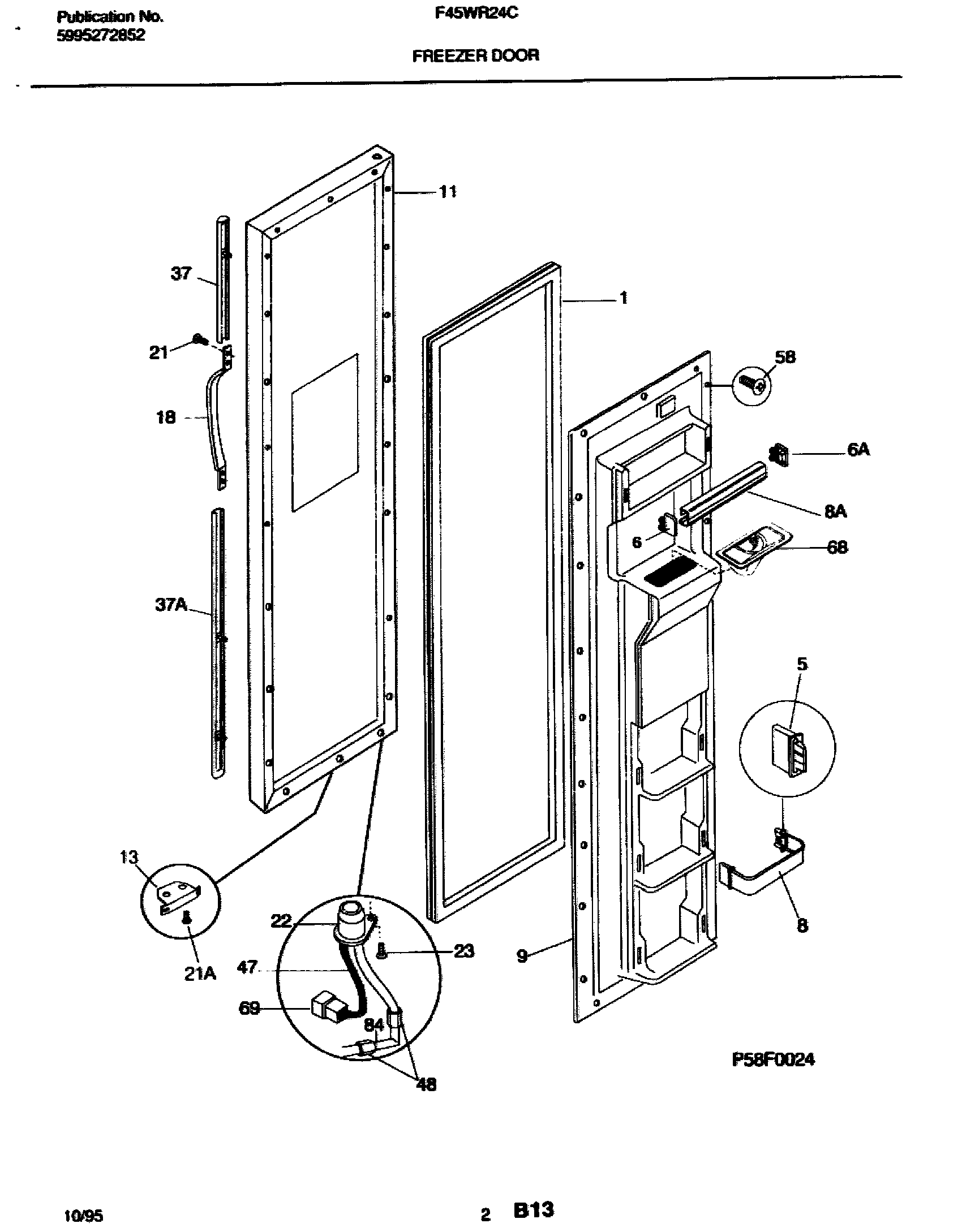

F45WR24CW1 03 – FREEZER DOOR

F45WR24CW1 03 – FREEZER DOOR

Written by

in

F45WR24CW1 03 – FREEZER DOOR

Products

PositionProduct
NIINSULATION
NIWCI 215598900
1215734313 Frigidaire Refrigerator Door Gasket
5WCI 5303288950
6WCI 5303297813
6AWCI 5303297814
8RACK-DOOR, W/END CAPS, (3)
8AWCI 215474043
9WCI 218510601
11WCI 5303917673
13WCI 5303289522
18WCI 215826401
21218843801 Frigidaire Refrigerator Screw
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 215615300
23WCI 5303001020
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
37ATRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
47WCI 218485300
48NUT, 7/16 X 20, NYLON
585304455651 Frigidaire Refrigerator Screw
68WCI 218020600
69CONNECTOR-DOOR HARN
84WCI 5308010289
