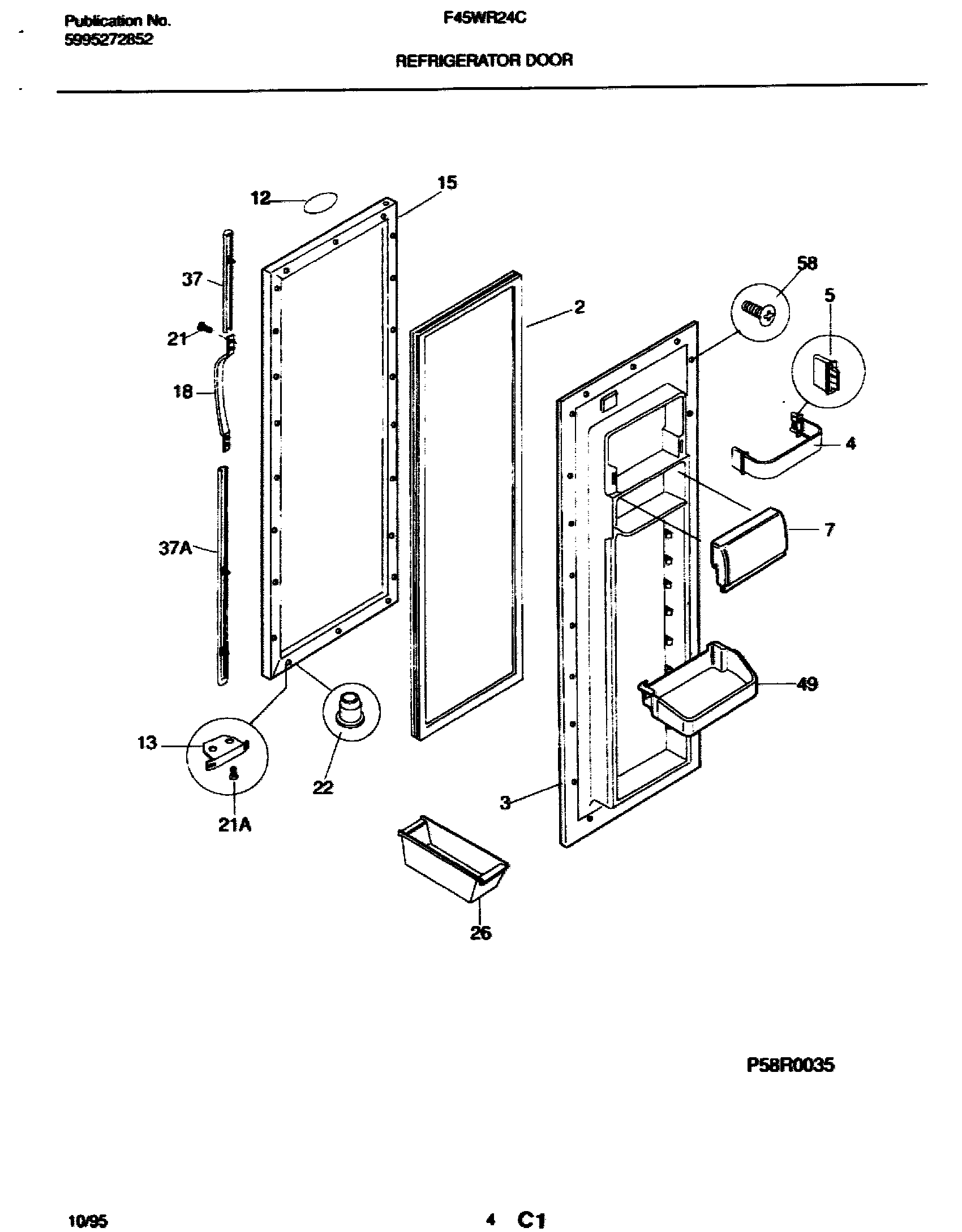

F45WR24CW1 05 – REFRIGERATOR DOORadmin2025-04-26T08:51:53+00:00F45WR24CW1 05 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| NI | INSULATION |
| 2 | WCI 215734314 |
| 3 | WCI 5303296572 |
| 4 | WCI 215120401 |
| 5 | WCI 5303288950 |
| 7 | WCI 5303308608 |
| 12 | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 12 | WCI 218364005 |
| 12 | LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED) |
| 13 | WCI 5303289522 |
| 15 | WCI 218069301 |
| 18 | WCI 215826401 |
| 21A | 218578600 Frigidaire Refrigerator Door Stop Mounting Screw |
| 21 | 218843801 Frigidaire Refrigerator Screw |
| 22 | WCI 5303289320 |
| 26 | WCI 3204522 |
| 37 | TRIM-HANDLE, 14.12``, WHITE, UPPER, W/CHROME BAND, AND SN |
| 37A | TRIM-HANDLE, 29.84``, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS |
| 49 | WCI 218592308 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
