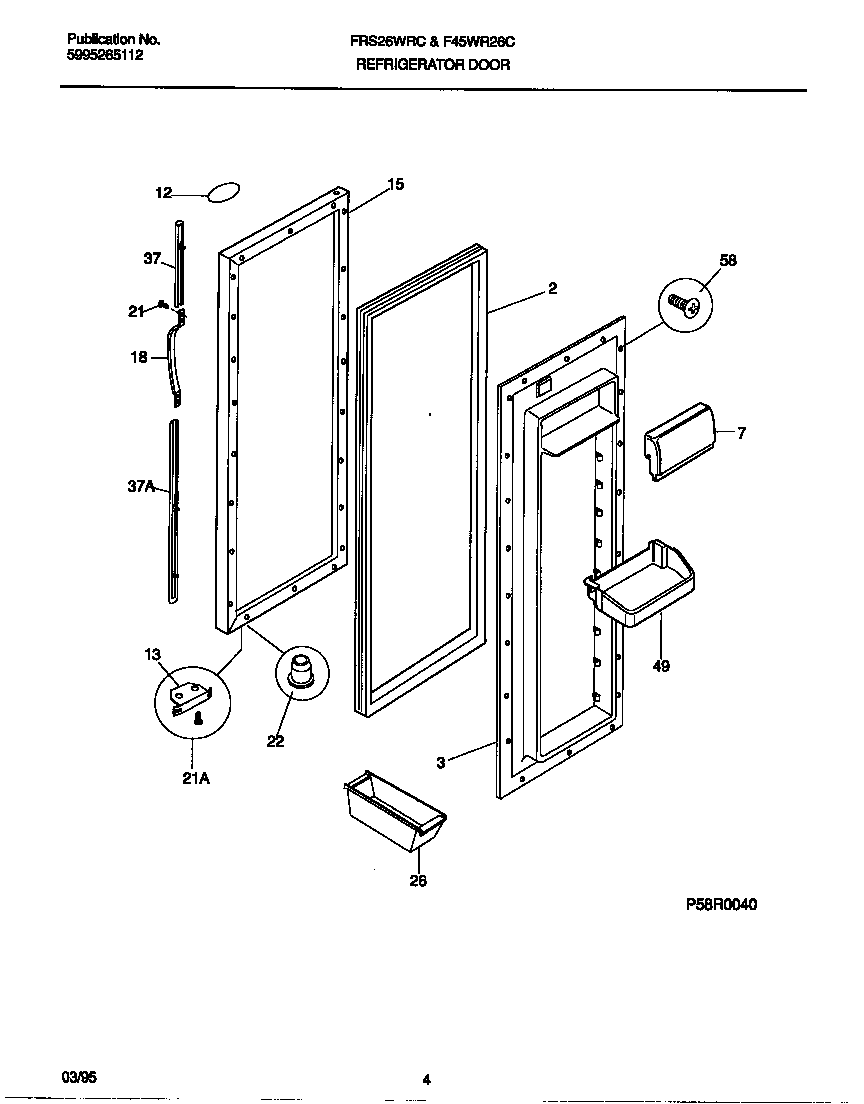

F45WR26CW0 03 – REFRIGERATOR DOOR

F45WR26CW0 03 – REFRIGERATOR DOOR

Written by

in

F45WR26CW0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*33002INSULATION
2WCI 215734314
3WCI 215403201
7WCI 5303308608
12LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
12WCI 218364004
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15WCI 218088801
18WCI 215826401
21WCI 215836900
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
37TRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
49WCI 218439616
585304455651 Frigidaire Refrigerator Screw
