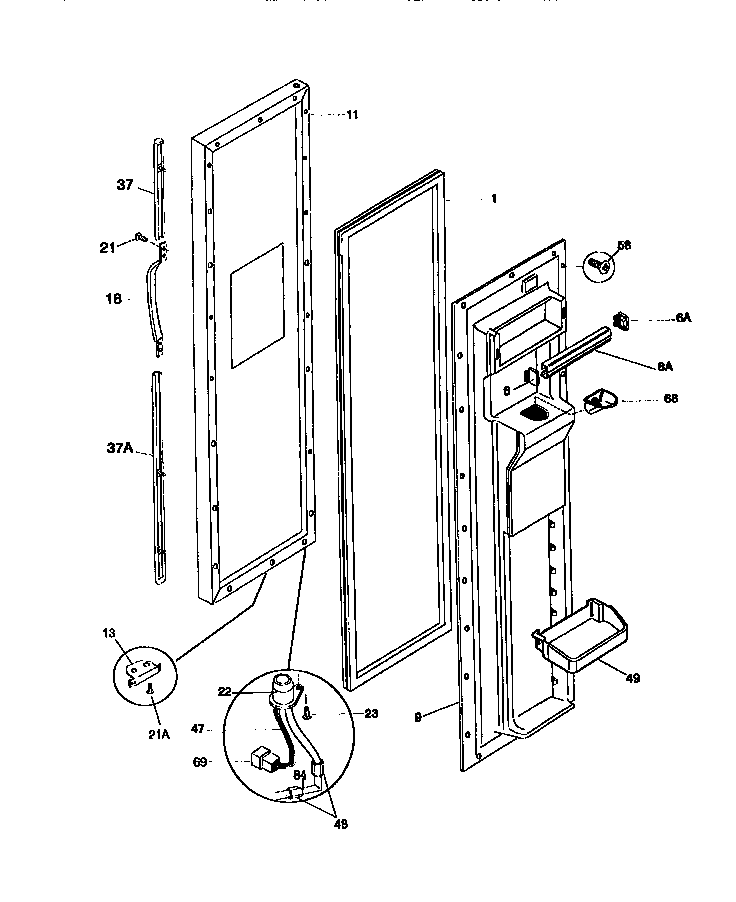

F45XH24BD0 02 – FREEZER DOOR

F45XH24BD0 02 – FREEZER DOOR

Written by

in

F45XH24BD0 02 – FREEZER DOOR

Products

PositionProduct
*47331INSULATION
*47333WCI 215598900
*47332WCI 215782300
1WCI 215734303
6AWCI 5303297814
6WCI 5303297813
8AWCI 215474025
9WCI 215426901
11WCI 5303917497
13WCI 5303289522
18WCI 218025202
21AWCI 215218600
21218843801 Frigidaire Refrigerator Screw
22WCI 215615300
23WCI 5303001020
37WCI 215867005
37ATRIM, HANDLE, 29.84“, DARK PUTTY, LOWER, W/CHROME BAND,
47WCI 215667300
48NUT, 7/16 X 20, NYLON
49WCI 215940002
585304455651 Frigidaire Refrigerator Screw
68WCI 218036400
69CONNECTOR-DOOR HARN
84WCI 5308010289
