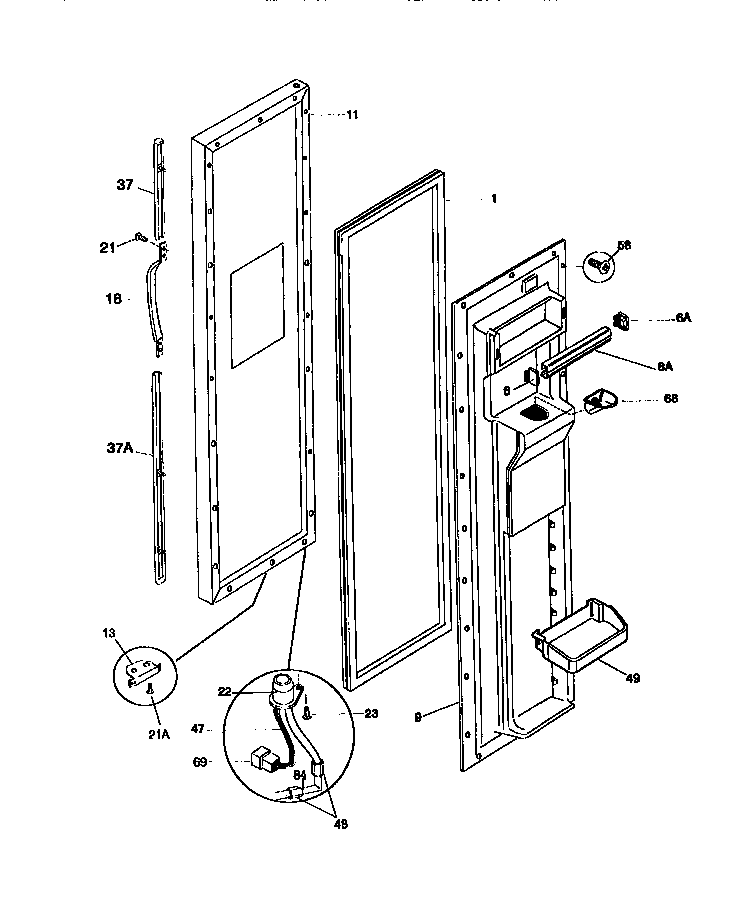

F45XH24BW0 02 – FREEZER DOOR

F45XH24BW0 02 – FREEZER DOOR

Written by

in

F45XH24BW0 02 – FREEZER DOOR

Products

PositionProduct
*47331INSULATION
*47332WCI 215782300
*47333WCI 215598900
1215734313 Frigidaire Refrigerator Door Gasket
6AWCI 5303297814
6WCI 5303297813
8AWCI 215474025
9WCI 215426901
11WCI 5303917496
13WCI 5303289522
18WCI 218025201
21AWCI 215218600
21218843801 Frigidaire Refrigerator Screw
22WCI 215615300
23WCI 5303001020
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
37ATRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
47WCI 215667300
48NUT, 7/16 X 20, NYLON
49WCI 215940002
585304455651 Frigidaire Refrigerator Screw
68WCI 218036400
69CONNECTOR-DOOR HARN
84WCI 5308010289
