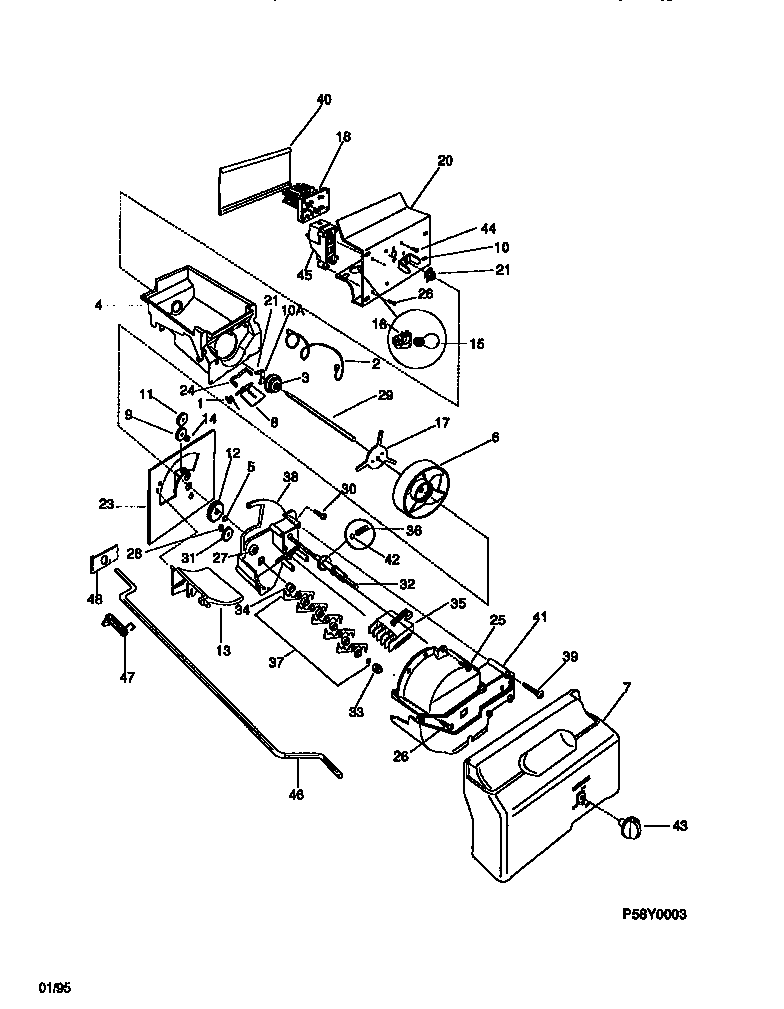

F45XH28BB0 10 – ICE DISPENSER

Products

Position	Product
*47328	WCI 215781700
*47329	HEAT MOTOR KIT, 115V, INCLUDES ITEMS, 7,10, 15, 17, 35
1	WCI 215294101
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 215732118
4	WCI 5303299527
7	WCI 218284800
7	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
8	WCI 215763501
11	WCI 215897500
12	WCI 215766503
13	WCI 215748101
14	WCI 215993003
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17A	WCI 215840700
17A	WASHER-FLAT
17	WCI 215794400
18	WCI 215760200
23	WCI 5303299660
24	WCI 215766303
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215254700
28	DOVER, MODULE, BLACK
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218379901
35	WCI 218284700
36	WCI 215254400
37	WCI 215736400
38	WCI 215894603
38	WCI 215763900
38	WCI 215631000
38	WCI 215630800
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
42	WCI 215756000
43	WCI 215760300
49	WCI 215794000
61	WCI 215766000
82	WCI 215296300
