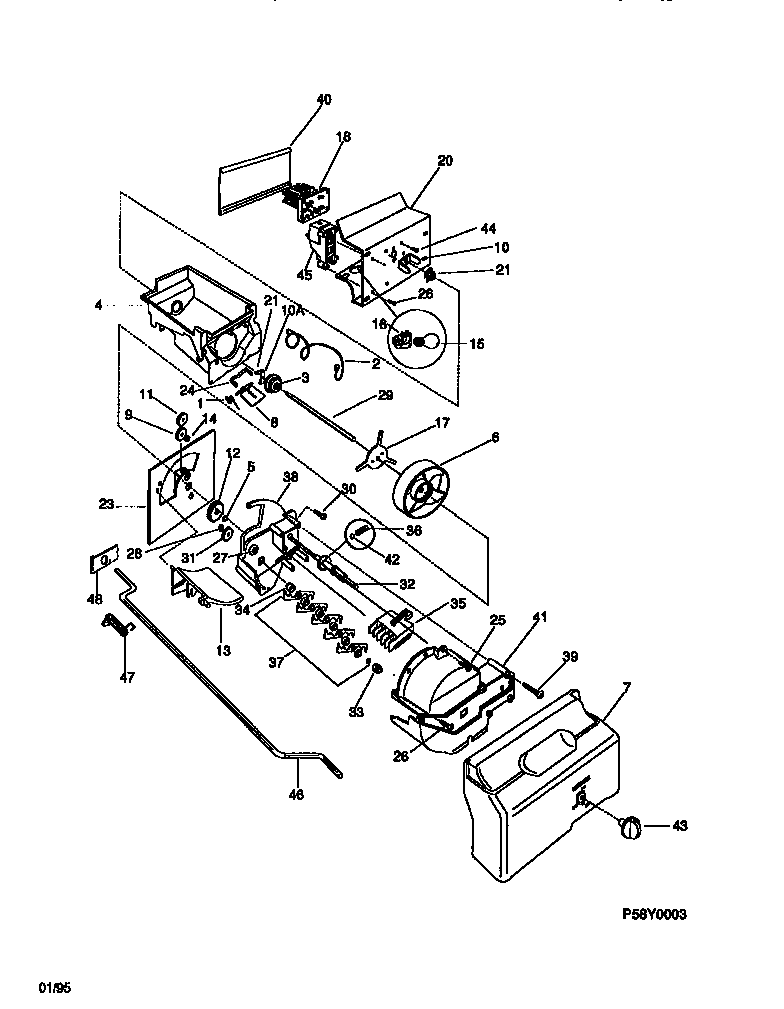

F45XH28BW0 10 – ICE DISPENSER

Products

Position	Product
*47329	HEAT MOTOR KIT, 115V, INCLUDES ITEMS, 7,10, 15, 17, 35
*47328	WCI 215781700
1	WCI 215294101
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 215732101
4	WCI 5303298524
7	WCI 218284800
7	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
8	WCI 215763501
11	WCI 215897500
12	WCI 215766501
13	WCI 215748101
14	WCI 215993001
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17A	WCI 215840700
17	WCI 215794400
17A	WASHER-FLAT
18	WCI 215760200
23	WCI 5303297844
24	WCI 215766301
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215254700
28	WCI 5303297846
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218379901
35	WCI 218284700
36	WCI 215254400
37	WCI 215736400
38	WCI 215894603
38	WCI 215763900
38	WCI 215631000
38	WCI 215630800
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
42	WCI 215756000
43	WCI 215760300
49	WCI 215794000
61	WCI 215766000
82	WCI 215296300
