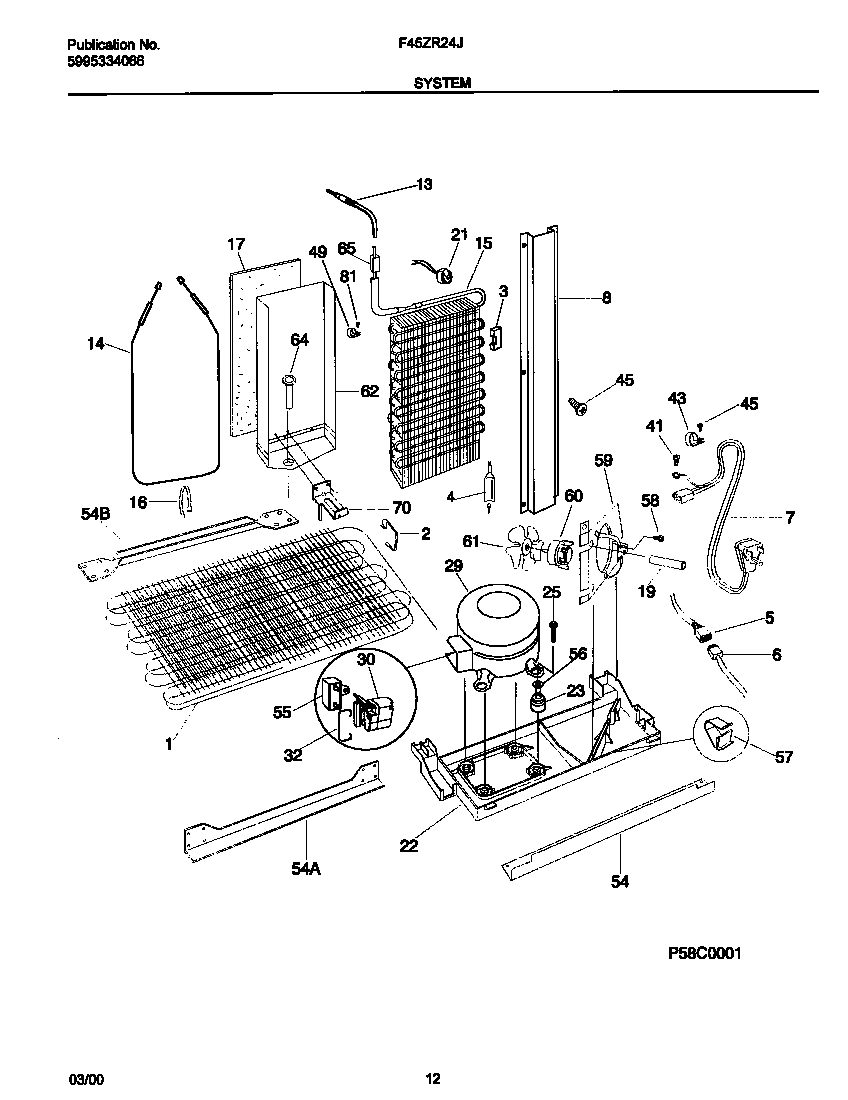

F45ZR24JD0 07 – SYSTEM

F45ZR24JD0 07 – SYSTEM

Written by

in

F45ZR24JD0 07 – SYSTEM

Products

PositionProduct
*52276WCI 215004800
*52270WIRING HARNESS,FRZR CONTROLS
*52267SPACER-COND TUBE,BLACK
*52268SPACER TUBE
*52277HOT TUBE REPAIR KIT, SERVICE
*52271TUBE-INLET (NOT ILLUSTRATED)
*52274WCI 215732700
*52269WIRING HARNESS,REFR CONTROLS
*522735308000133 Frigidaire Refrigerator Clamp
*52275WCI 215004700
*522725303001199 Frigidaire Refrigerator Wiring Harness Clamp
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
305304410951 Frigidaire Refrigerator Electric Relay Assembly
32CLAMP,ELEC CONT MTG ,COMPRESSOR
415308000039 Frigidaire Refrigerator Screw
45C5304455651 Frigidaire Refrigerator Screw
45B5304455852 Frigidaire Refrigerator Screw
45AWCI 218769200
49WCI 215506900
54WCI 5303289027
54WCI 5303289311
54WCI 5303289292
55WCI 218909902
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
