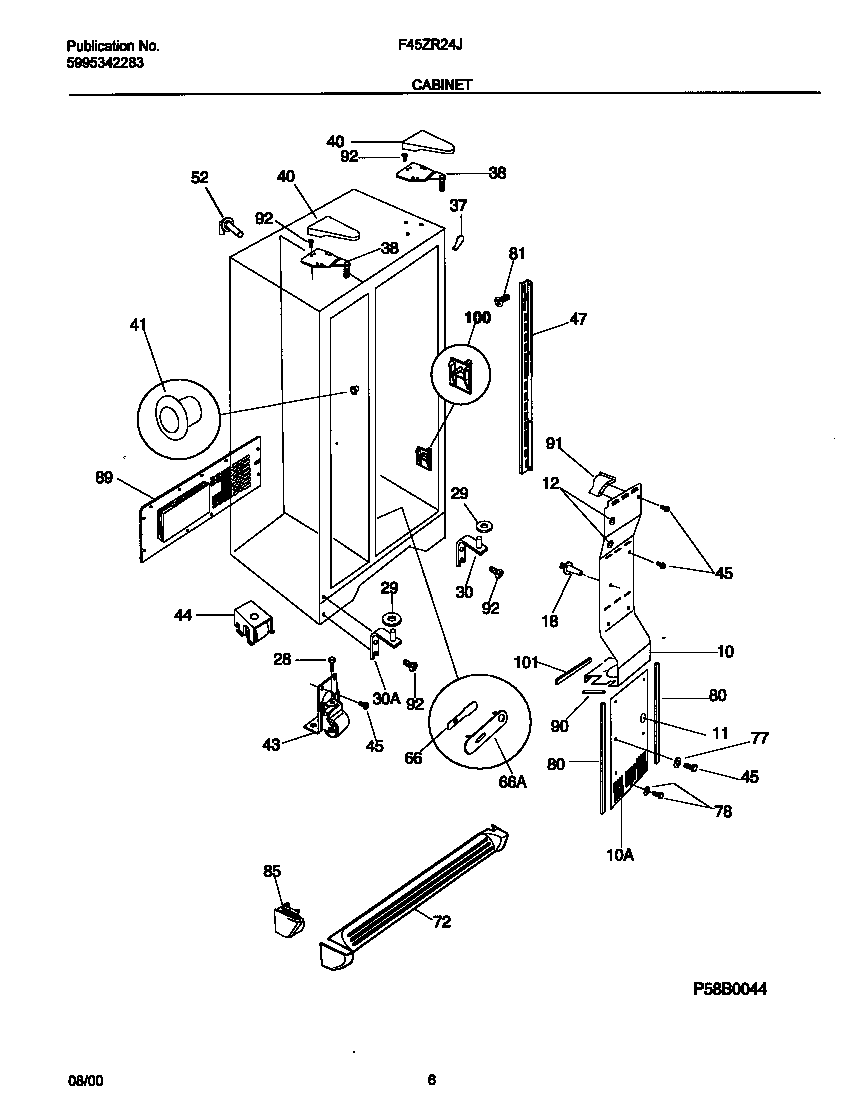

F45ZR24JD1 04 – CABINET

F45ZR24JD1 04 – CABINET

Written by

in

F45ZR24JD1 04 – CABINET

Products

PositionProduct
*64895WCI 5303322647
*64896WCI 218902101
*64889WCI 218979701
*64888WCI 218871201
*64892WCI 218154003
*64891SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*64893WCI 5303289036
*64887SUPPORT-AIR DUCT CVR,1.83“ LONG
*64900PLUG, BUTTON, CABINET LINER (NI)
*64897TOUCH, UP PAINT, ALMOND (NI)
*64894WCI 5303289037
*648905304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637402
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30AWCI 215009000
30BWCI 218979601
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38BWCI 218215251
38AWCI 218215249
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922703
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
