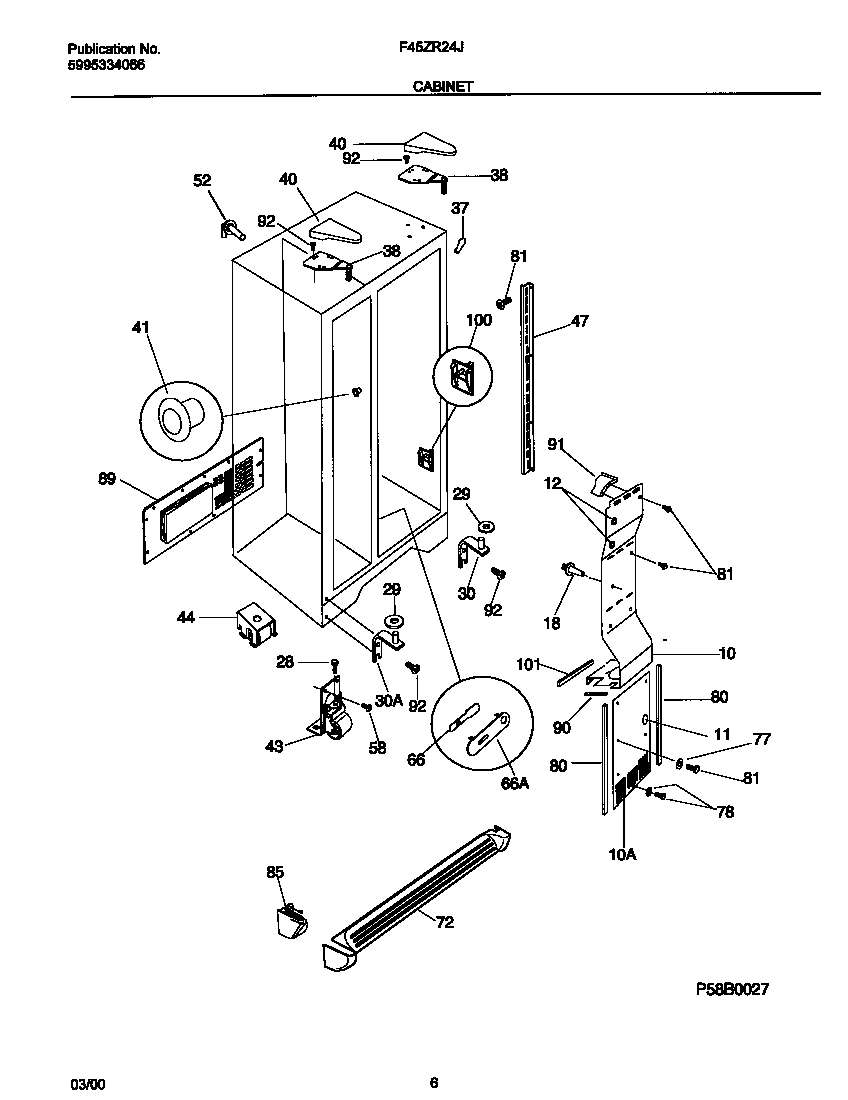

F45ZR24JW0 04 – CABINET

F45ZR24JW0 04 – CABINET

Written by

in

F45ZR24JW0 04 – CABINET

Products

PositionProduct
*52256WASHER, .28 X .62 X .19, NYLON
*52255WCI 218902101
*52248WCI 218871201
*52249WCI 218730800
*52251SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*52254WCI 5303322647
*52246SUPPORT-AIR DUCT CVR,1.83“ LONG
*52259PLUG, BUTTON, CABINET LINER (NI)
*52245WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*52247WCI 215598900
*52252WCI 5303289036
*52253WCI 5303289037
*522505304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*522575303321319 Frigidaire Refrigerator White Touch Up Paint
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BWCI 218730700
30AWCI 215009000
37WCI 5303321081
38BWCI 218215243
38AWCI 218215241
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922701
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
