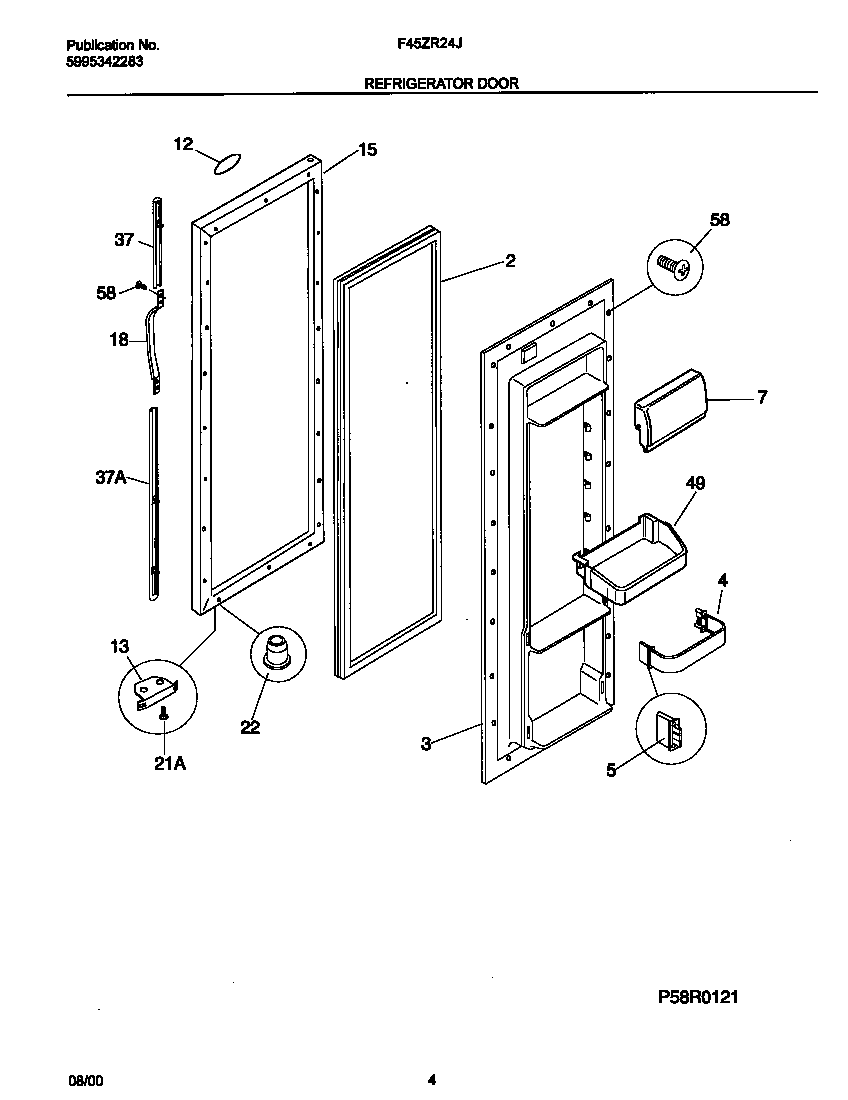

F45ZR24JW1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*64886INSULATION
*64885TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*64884LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
2WCI 215734314
3WCI 215390401
4WCI 218807029
5WCI 5303288950
7WCI 5303304563
12WCI 218364004
13WCI 5303289522
15WCI 5303918156
18297311201 Frigidaire Freezer Door Handle
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
37AWCI 215782300
37WCI 218811615
37WCI 218811618
37BWCI 218676004
49WCI 218592327
58218781101 Frigidaire Handle Screw
